P1157E-500

SKU
P1157E-500
Lead time 21-30 days

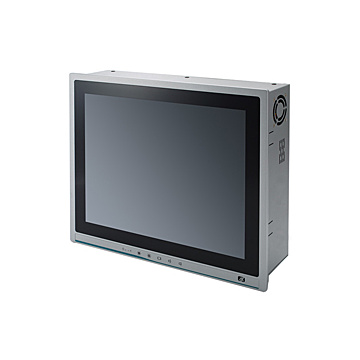

15" XGA TFT Expandable Industrial Touch Panel Computer with 7th/6th Gen Intel Core i7/i5/i3 Processor and 1 PCI/PCIe Slot
Details
* 15" XGA TFT LCD display
* LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processors
* Intel® H110 chipset
* Less screw design for easy installation
* 4 USB 3.0, 2 USB 2.0 and 4 COM
* One PCIe x4 or one PCIe slot
* Built-in speakers and optional Wi-Fi 802.11 b/g/n module
* Robust IP65 compliant aluminum front bezel
* 5 OSD keys in front panel
Specifications
LCD Specifications
15" TFT LCD Panel
Resolution : 1024 x 768
Brightness : 250 cd/m²
Viewing Angle (H-V): 160/140

Touchscreen
Resistive touch panel

Processor Core Logic System

CPU:
LGA1151 socket 6th generation Intel Core i7/i5/i3

System Chipset:
H110

System Memory:
2 x 288-pin DDR4L-2133 DIMM, up to 32 GB

Ethernet
2 x RJ-45 GbE LAN

I/O Interface
3 x RS-232 (COM 2-4)
1 x RS-232/422/485 (COM 1)
1 x HDMI
1 x VGA
1 x DisplayPort
4 x USB 3.0 (back)
2 x USB 2.0 (front)
2 x 10/100/1000 Mbps Ethernet (Intel® i219LM/i211AT)
1 x Audio (Mic-in/Line-out)
1 x PS/2 Keyboard & mouse combo

Storage
1 x 2.5” SATA bay

Expansion
1 x PCIe x4 or 1 x PCI

Power Supply
240V AC

Software Support
Windows 7, Windows 8, Windows 10, Linux

Environment Specifications
Operating Temperature 0°C to 45°C
Storage temperature: -20°C ~ 60°C
Humidity: 10% ~ 90% (non-condensing)


Mechanical
Construction: Aluminium housing
Mounting: Panel Mounting , VESA-100
Weight: 5.2kg
Dimension: 378.3 x 90 x 310.3 mm

Safety: CE
More Information
CoolingCPU tuuletin
Display Size15"
Touch typeResistive
CPU FamilySkylake (6th Gen Core i3/i5i7)
