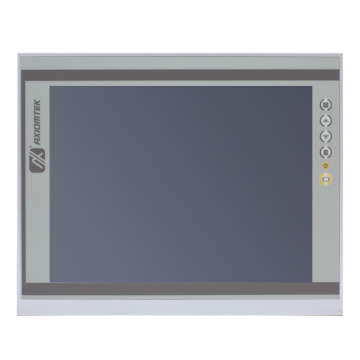

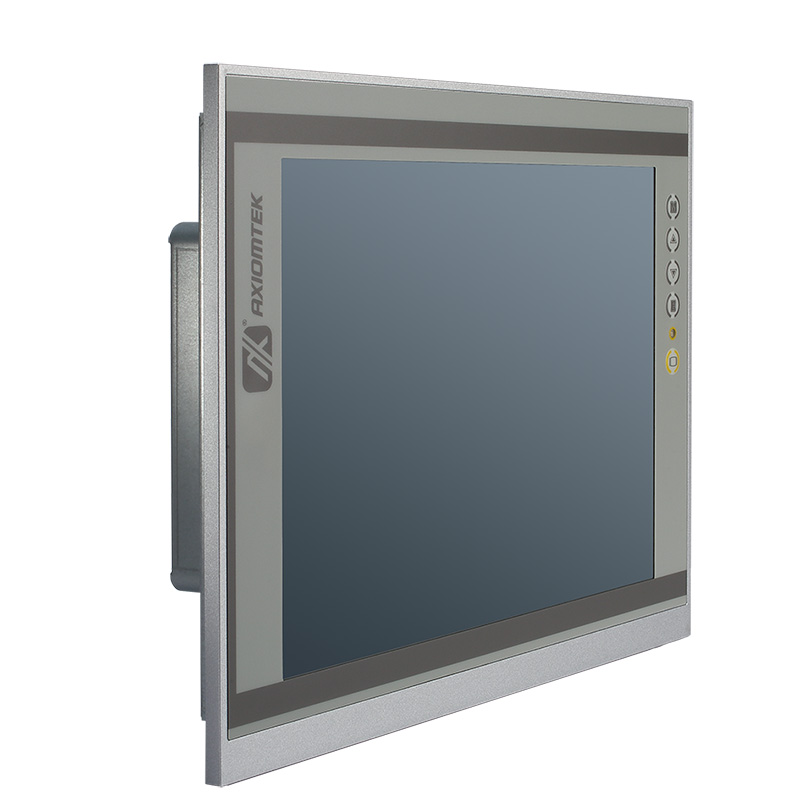

P6121PR-DC-U-V3 12" Touch monitor (Resistive touch)
SKU
P6121PR-DC-U-V3
Lead time 21-30 days
12.1" XGA TFT Industrial LCD Monitor
- 12.1" XGA TFT LED backlight LCD with 500 nits of brightness
- NEMA 4/12 (IP65) compliant flat panel monitor
- Supports panel mount, wall mount, and VESA arm
- Resistive touchscreen
- 24 VDC power input
- HDMI, DisplayPort, and VGA with multi-signal inputs
| Display | |
| Screen Size | 12" TFT LCD |
| Screen Resolution | 1024x768 |
| Display Ratio | 4 ::03 |
| Contrast Ratio | 1000 ::1 |
| Brightness | 420 nits |
| Viewing Angle | 178 L/R 178 U/D |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Resistive touch (Single-touch) |

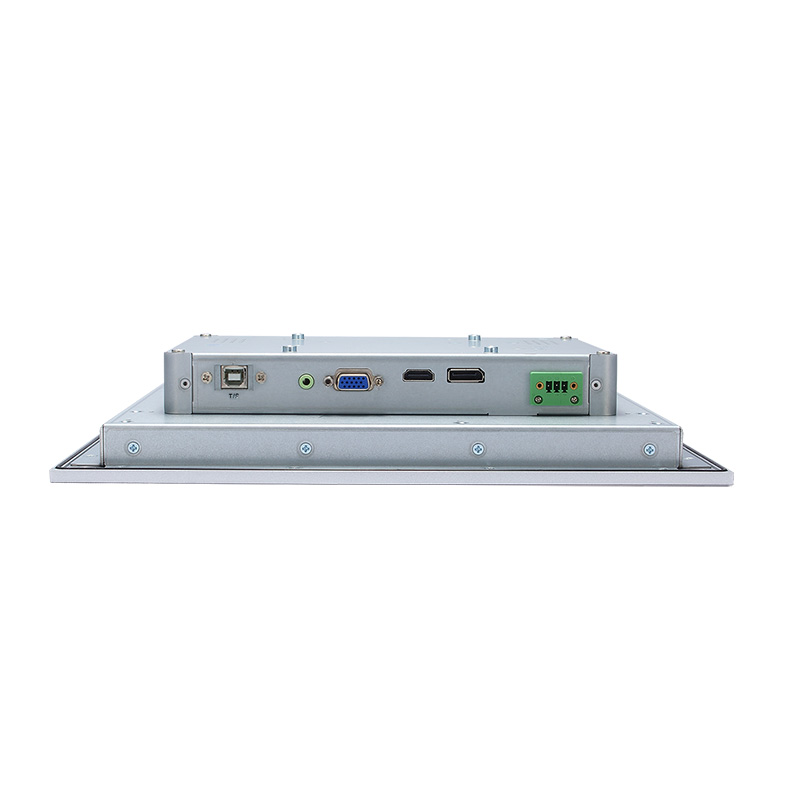

| I/O Ports | |
| Standard configuration |
HDMI |
| DisplayPort | |
| VGA | |
| USB-Input (touch) | |
| DC input | |
| Operating System | |
| Operating System | Windows 10 /Windows11 / LINUX |
| Power | |
| DC Input / Source Voltage | +24V DC 22W |
| Multimedia | |
| Integrated Speakers | 2x Speaker |
| Operating Temperature | |
| Operating Temperature | -20ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 3.7kg |
| Dimensions | 312 x 250 x 55 mm |
| Enclosure | |
| Bezel | - |
| Material | - |
| Mounting | Panel mount Wall mount Desktop stand VESA mount |
| Certification | |
| Certification | CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Display Size | 12.1" |
| Touch type | Resistive |
| Signal input | VGA, HDMI, Display Port |
