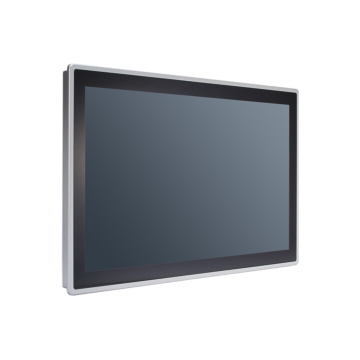

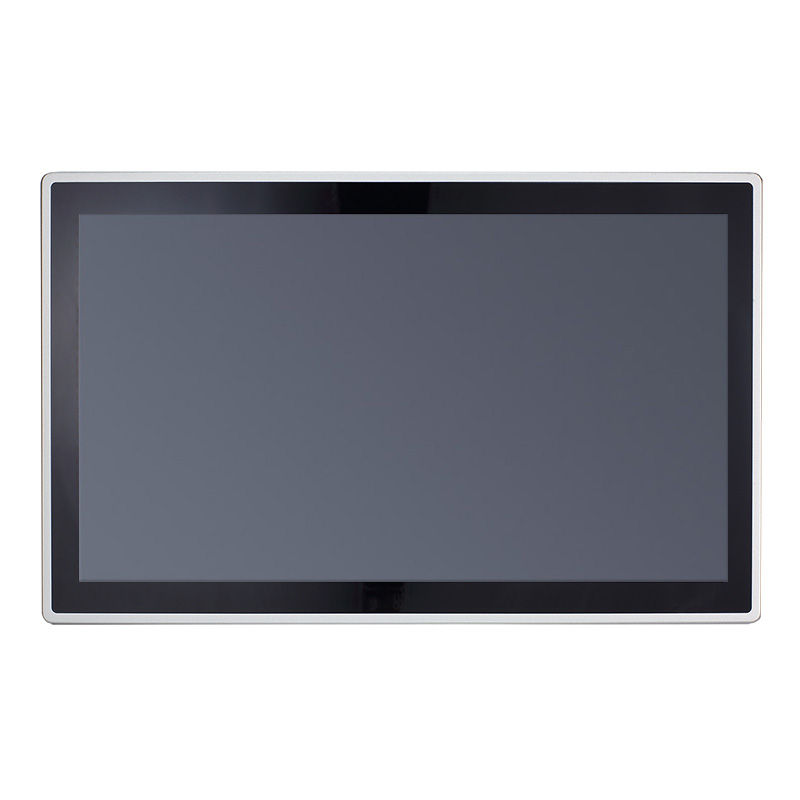

P6187WPC-DC-U-V3 18.5" Touch monitor (PCAP touch)
SKU
P6187WPC-DC-U-V3
Lead time 21-30 days
18.5" WXGA TFT Widescreen Industrial LCD Monitor
- 18.5" WXGA TFT LCD with 450 nits of brightness
- Projective capacitive multi-touch
- NEMA 4/12 (IP65) compliant flat panel monitor

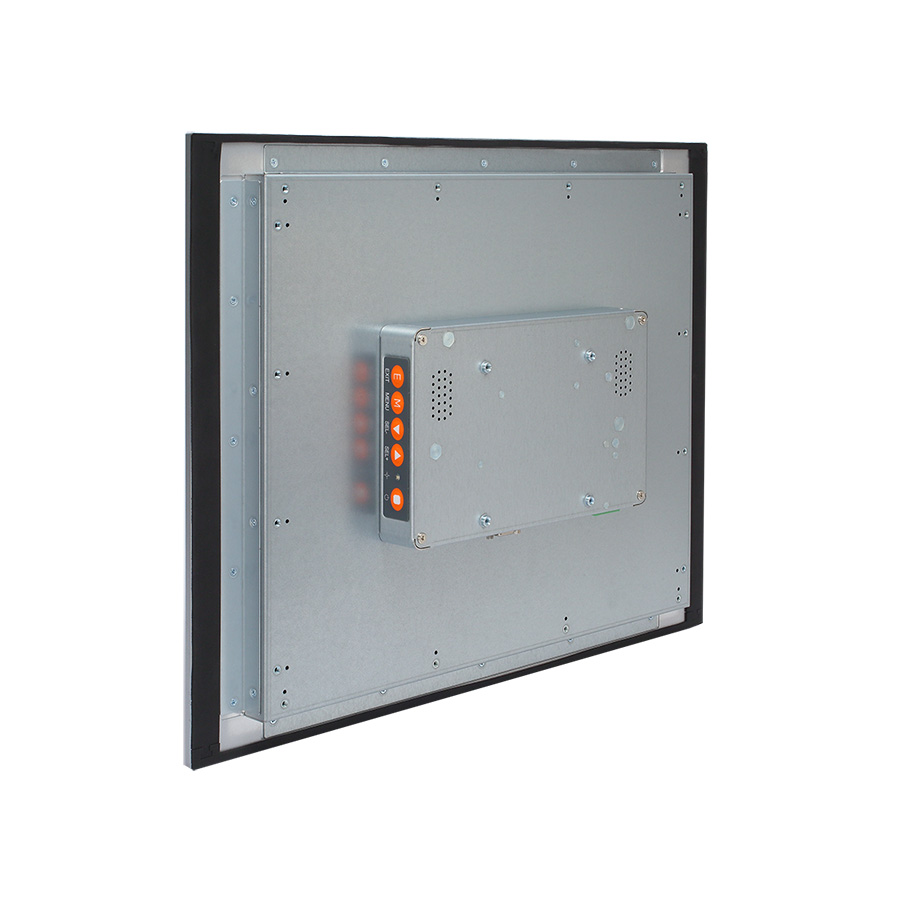

- Supports panel mount, wall mount, and VESA mount
- 24 VDC power input

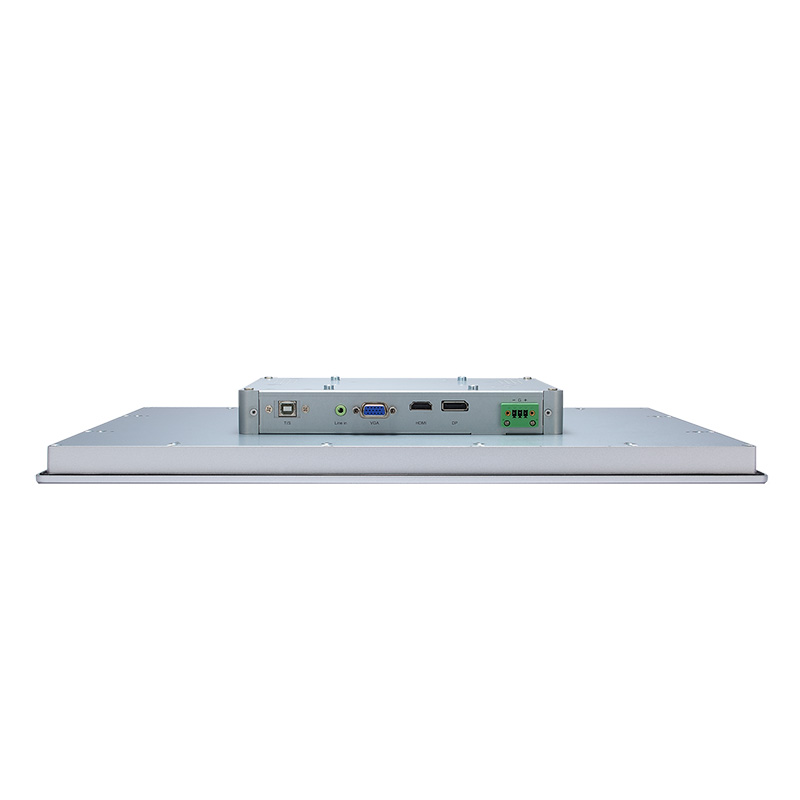

- VGA, HDMI and DisplayPort, with multi-signal inputs
| Display | |
| Screen Size | 18.5" TFT LCD |
| Screen Resolution | 1366x768 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | 1000 ::1 |
| Brightness | 450 nits |
| Viewing Angle | 170 L/R 160 U/D |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | PCAP touch (Multi-touch) |
| I/O Ports | |
| Standard configuration |
HDMI |
| DisplayPort | |
| VGA | |
| USB-Input (touch) | |
| DC input | |
| Operating System | |
| Operating System | Windows 10 /Windows11 / LINUX |
| Power | |
| DC Input / Source Voltage | +24V DC 21W |
| Multimedia | |
| Integrated Speakers | 2x Speaker |
| Operating Temperature | |
| Operating Temperature | -10ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 6.0kg |
| Dimensions | 460 x 285 x 53 mm |
| Enclosure | |
| Bezel | - |
| Material | - |
| Mounting | Panel mount Wall mount Desktop stand VESA mount |
| Certification | |
| Certification | CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Display Size | 18.5" |
| Touch type | Projected Capasitive (PCAP) |
| Signal input | VGA, HDMI, Display Port |
