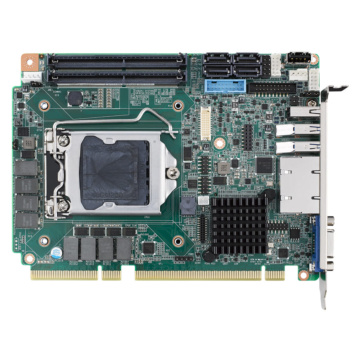

PCE-4132

SKU
PCE-4132G2-00A
Lead time 21-30 days

LGA1200 10th Gen Intel® Xeon® and Core™ i9/i7/i5/i3 Half-size SHB with PCIe 3.0/Triple Independent Display/Dual GbE LAN/SATA III/USB 3.2

  • Complies with PICMG 1.3
  • Supports Intel Xeon W Family series, Core i9/i7/i5/i3 LGA1200 processors with W480E
  • Dual Channel DDR4 2666/2933 (ECC/non-ECC) up to 64 GB
  • Supports PCIE 3.0, USB 3.2, SATA3.0, SW RAID 0, 1, 5, 10
  • Supports triple displays: VGA+DVI-D (optional) + DP (optional)
  • Supports out-of-band remote management with AMT9.0
  • Supports Advantech TPM module (optional)
  • Supports SUSIAccess and embedded software APIs
Form Factor
Form Factor PICMG1.3


System
Processor Intel® Xeon® W Family/Core™ i9/i7/i5/i3 LGA1200 processor
Security Hardware
Chipset Intel® W480E chipset
Storage 4 x SATA-600 (support RAID 0,1,5,10)
Memory 2 x DDR4-2933/2666 Mhz DIMM, up to 64GB
Graphics Chipset integrated with Intel HD Graphics
I/O Ports
USB 2.0 1 x USB 2.0
5 x USB2.0 (pin header)
USB 3.2 2 x USB3.2
4 x USB3.0 (pin hearder)


Serial 2 x COM pin header
Video 1 x VGA
1 x DVI-D (pin header)
1 x DP (pin header)
Ethernet 2 x 10/100/1000 Mbps Ethernet (2x Intel® i210-AT)
Other Ports GPIO
Expansion
Expansion Interface PICMG1.3 :
1 x PCIex16
4 x PCIex1
Operating System
Operating System Windows10 , Linux
Power
Power Input Standard 12V ATX power
Power Requirements
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 1.5kg
Dimensions 172mm x 126mm
Certification
Certification CE
More Information
Manufacturer / BrandAdvantech
SocketLGA 1200
Form FactorPICMG 1.3
