PCI-1712

SKU
PCI-1712
Lead time 21-30 days

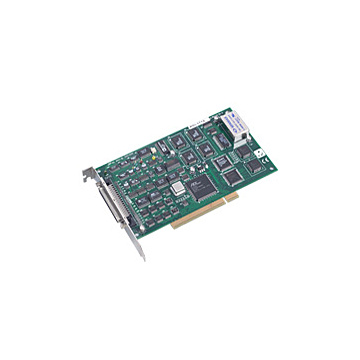

1 MS/s, 12-bit, 16-ch Multifunction PCI Card

  • 16 single-ended or 8 differential or a combination of analog inputs
  • 12-bit A/D converter, with up to 1 MHz sampling rate
  • Two 12-bit analog output channels with continuous waveform output function
  • 16-ch digital input and 16-ch digital output
  • Three 16-bit programmable multifunction counter/timers on 10 MHz
  • Programmable gain
  • Automatic channel/gain scanning
  • Onboard FIFO memory (AI: 1,024 samples AO: 32,768 samples)
  • Auto-calibration (AI/AO)
  • PCI-Bus for data transfer
  • Pre-, post-, about- and delay-trigger data acquisition modes for analog input channels
  • Flexible triggering and clocking capabilities
More Information
Manufacturer / BrandAdvantech
