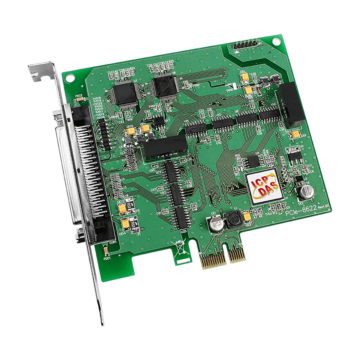

PCIe-8622

Lead time 14-22 days

PCI Express, 200 kS/s, 16-ch, 16-bit Simultaneously Sampled AI Board with 12-ch Isolated DI

Board
Interface	PCIex1
Data Bus	32bit
Power	600mA @ +3.3V 250mA @ +12V
Card ID	Yes (4-bit)
Connector	SCSI II 68-pin x 1
Dimensions	120 x 125 x 22mm
Environment
Operating Temp	0 ~ +60°C
Storage Temp	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing


Analog Input
Channerls	16 single-ended (Simultaneously)
Range	Gain: 1, 2 Bipolar Range: ±10 V, ±5 V
Resolution	16-bit
Accuracy	0.05 % of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	200 kS/s
Input Impedance	10,000 MΩ/4 pF
Overvoltage Protection	Continuous ±35 Vp-p
FIFO Size	2048 samples
Trigger Mode	Software, Pacer, External
Isolation	2500 VDC (Bus-type)
Data Transfer	Polling, Interrupt, DMA
Analog Output
Channers	2
Range	±5 V, ±10 V
Resolution	16-bit
Accuracy	±10 LSB
Voltage Output Capability	±5 mA
Slew Rate	2.8 V/µs
Operation Mode	Static update
Digital Input
Channers	12
Type	5 V/TTL
ON Voltage Level	2.0 V Min.
OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update
Data Transfer	Polling
Isolation	2500 VDC
Digital Output
Channers	12
Type	5 V/CMOS
Operation Mode	Static Update
Load Current	Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V
Response Speed	1.0 MHz (Typical)
Isolation	2500 VDC
DO Readback	Yes
Timer / Counter / Frequency
Channers	2
