PET-7H24M
SKU
PET-7H24M
Lead time 14-22 days

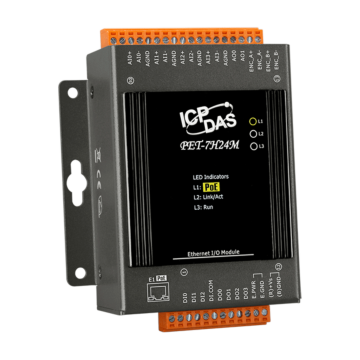

Ethernet High Speed Data Acquisition Module with 4 x AI, 2 x AO, 3 x DI, 4 x DO, 1 x Encoder and PoE
- 4 differential Analog Input Channels (24-bit Resolution)
- 24-bit ADC with Built-in Sinc3 Filter
- Supports Real Sample and Hold
- Sample Rate up to 128 kS/s
- 2 x AO, 4 x DO, 3 x DI and 1 x Encoder Channels
- Continuous and N Data Sample Data Transmission Mode
- A/D Trigger Mode
- Software Trigger
- Analog Input Trigger
- Software Support
- Supported Operating Systems
Windows 7/8/10 and Linux - Software Compatibility
- Microsoft VC, C#, VB.NET SDK API and Demo
- NI LabVIEW Toolkit and Demo for Windows
- C/C++ library and Demo for Linux
- Supported Operating Systems
- Built-In 10/100BASE-T Auto-negotiating, Auto MDI/MDI-X Ethernet Port
- Option for External Power Supply or POE Supply
| I/O | Multi I/O |
|---|---|
| Manufacturer / Brand | ICP DAS |
| Connection | Modbus TCP |
