PICO52R

SKU
PICO52RPGG
Lead time 14-22 days

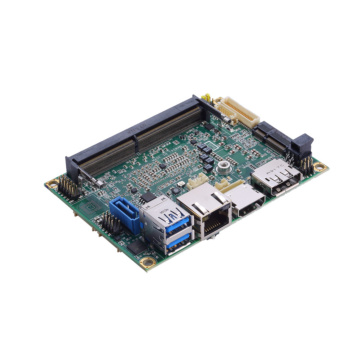

Pico ITX SBC with 8th Gen Intel® Core™ i7/i5/i3 and Celeron® Processor, DisplayPort, HDMI, LVDS and 2 GbE LAN
  • 8th gen Intel® Core™ i7/i5/i3 and Celeron® processor
  • 1 DDR4 SO-DIMM for up to 16GB of memory
  • 2 USB 2.0 and 2 USB 3.0
  • 2 GbE LAN
  • M.2 Key E
  • Intel® AMT 11 supported
Form Factor
Form Factor PICO-ITX

System
Processor 8th gen Intel® Core™ i7/i5/i3 and Celeron® processor onboard
Integrated Graphics Yes
Security Hardware
Chipset SoC integrated
Storage 1 x SATA-600
Storage Support
Memory 1 x 260-pin DDR4-2400 SO-DIMM, up to 16GB
Graphics Intel HD graphics Integrated
I/O Ports
USB 2.0 2 x USB 2.0
USB 3.0 2 x USB 3.0
USB 3.1
Serial 2 x RS-232/422/485
Video 1 x LVDS
1 x HDMI
1 x DisplayPort
Ethernet 2 x 10/100/1000 Mbps (Intel® i211-AT & Intel® i219-LM)
Other Ports DIO
MIC-in/Line-in/Line-out
1 x PS2 keyboard and mouse
Expansion
Expansion Interface 1 x M.2 Key E (PCIe x1, USB 2.0 in 22x30)
Operating System
Operating System Windows 10
Power
DC Input / Source Voltage 2 x 2-pin connector
+12V DC-in only
AT Auto Power On function supported
Operating Temperature
Operating Temperature Operating Temperature -20°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg)
Dimensions 100 x 72 mm
Certification
Certification CE
More Information
Manufacturer / BrandAxiomtek
Form FactorPico-ITX
