PICO570-U5
SKU
PICO570-U5
Lead time 21-30 days

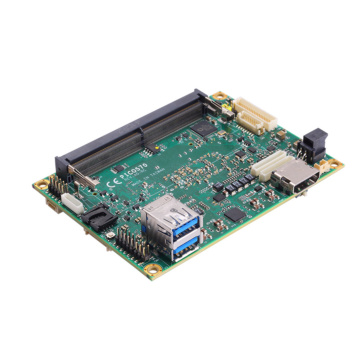

Pico-ITX SBC with Intel® Core™ Ultra Processors (Series 1), HDMI, LVDS, 2.5GbE LAN, and GbE LAN
- Intel® Core™ Ultra processors (series 1)
- 1 DDR5 SO-DIMM, up to 48GB
- 2.5GbE LAN and GbE LAN
- M.2 Key E
- M.2 Key M
| Form Factor | |
| Form Factor | PICO-ITX |
| System | |
| Processor | Intel® Core™ Ultra processors (series 1) onboard |
| Security Hardware | fTPM 2.0 supported by Intel® Platform Trust Technology (PTT) |
| Chipset | SoC integrated |
| Storage | 1 x M.2 Key M 2280 (PCIe x4) |
| Memory | 1 x 262-pin DDR5-5600 SO-DIMM, up to 48GB |
| Graphics | Intel® Arc Xe-LPG Graphics |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.2 | 2 x USB 3.2 |
| Serial | 1 x RS-232/422/485 |
| Video | 1 x HDMI 1 x LVDS; 18/24-bit single/dual channel |
| Ethernet | 1 x 10/100/1000 Mbps Ethernet (Intel® I219-LM) 1 x 10/100/1000/2500 Mbps Ethernet (Intel® I226-V) |
| Other Ports | 4-channel in/out programmable HD Audio link via pin header |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E 2230 (PCIe x1, USB 2.0) |
| Operating System | |
| Operating System | Windows 10 / Windows 11 |
| Power | |
| DC Input / Source Voltage | 2 x 2-pin connector +12V DC-in only AT auto power on function supported |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -20°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 100 x 72 mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Form Factor | Pico-ITX |
