POCm-W24C-ULT3
SKU
POCm-W24C-ULT3
Lead time 21-30 days

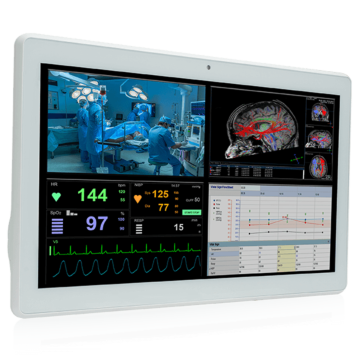

● 24" fanless FHD medical grade panel PC
● Intel® Celeron®, Core™ i5/i7 Skylake ULT SoC processor
● Three hot-swappable batteries with a total runtime of 8~16 hours is ideal for non-powered medical carts
● The battery docking station can perform fast charging, taking only 3 hours from 0 to 100%
● Optional integrated RFID, 3-in-1 card reader, external 1D/2D barcode reader and USB phone
● Certification:CE,FCC Class B Part18, IEC 60601-1:2005+AMD1:2012 ( Edition 3.1), IEC 60601-1-2: 2014 (Edition 4.0)
| System | |
| Processor | 6th generation Intel® mobile ULT Core™ i7-6600U Core™ i5-6300U Celeron® 3855U |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x SATA SSD 2 x M-key M.2 2242/60/80 (PCIe+SATA) with RAID |
| Storage Support | |
| Memory | 2 x SO-DIMM DDR4 2400MHz up to 32 GB |
| Audio | 2 x 3W Speaker |
| Communication | Bluetooth V4.2 Wireless LAN IEEE 802.1 a/b/g/n/ac 2T2R module |
| Display | |
| Screen Size | 24" TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | |
| Brightness | 250 nits |
| Viewing Angle | -89~89(H); -89~89(V) |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| Surface Hardness | 6H |
| I/O Ports | |
| USB 2.0 | 2x USB 2.0 |
| USB 3.0 | 4x USB 3.0 |
| Serial | 2x RS-232/422/485 |
| Video | 2 x HDMI |
| Ethernet | 2 x RJ45 GbE |
| Other Ports | 1 x Audio out (side) + 1 x Mic in (side) 1 x Digital Mic |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 12-28V DC 230V AC-DC Adapter (Medical , 150W) 3 slots for hot swappable battery pack |
| Power Management | |
| Expansion Slots | |
| 1x mPCIE | |
| Multimedia | |
| Integrated Speakers | 2 x 3W Speaker |
| Camera | 5M CMOS front-facing camera with auto-focus |
| Operating Temperature | |
| Operating Temperature | 0ºC to 40ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 9.5 kg |
| Dimensions | 594.6 x 379.6 x 71 mm |
| Enclosure | |
| Bezel | |
| Material | ABS +PC plastic with anti-bacterial material, Aluminum |
| Mounting | Wall, Stand and Arm VESA 100/75 |
| Note * | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE,FCC Class B Part18 IEC 60601-1:2005+AMD1:2012 ( Edition 3.1) IEC 60601-1-2: 2014 (Edition 4.0) |
| Cooling | Fanless |
|---|
