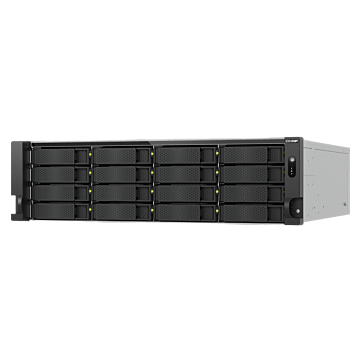

QNAP TS-h1677AXU-RP
SKU
TS-h1677AXU-RP
Lead time 5-10 days
7,467.25EUR 5,950.00EUR
3U rackmount NAS, AMD Ryzen™ 7000 Series processors, DDR5, and M.2 PCIe Gen 5
| Form Factor | |
| Form Factor | 3U Rackmount |
| System | |
| Processor | AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz |
| CPU Architecture | 64-bit x86 |
| System Memory | 32 GB UDIMM DDR5 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 16 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes, (Not supported M.2 SSD) |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 5 x2 slots |
| Network / Connection | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Wake on LAN (WOL) | Yes |
| USB 2.0 port | |
| USB 3.2 Gen 2 port | 2 x Type-A USB 3.2 Gen 2 10Gbps |
| Physical | |
| Dimensions (HxWxD) | 131.3 × 482.2 × 550.8 mm |
| Weight (Net) | 15.64kg |
| Operating Temperature | 0 - 40 °C |
| Power Supply Unit | 550W(x2), 100-240V |
