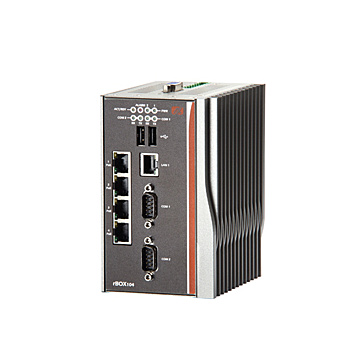

rBOX104

Lead time 4-22 days
SKU
rBOX104-820-FL1.1G-RC
Robust Din-rail Fanless Embedded System with Intel® Atom™ Processor Z510PT 1.1GHz, Intel® US15WPT Chipset and 4-port PoE
Details
* Fanless operation
* Wide temperature operation of -40°C ~ +70°C
* Supports 4-port IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
* Supports 2 COM ports, 2 USB ports and VGA port
* Supports one 10/100/1000Mbps Ethernet with
* Magnetic Isolation Protection
* SNMP V1/V2c
* Supports CompactFlash™
* Redundant power input with terminal block and 48VDC
* Supports AXView monitoring software package
Package includes
rBox104
* Z510PT (1.1 GHz) Atom Cpu
Specifications
Processor Core Logic System

CPU:
Intel® Atom ™ processor Z510PT (1.1 GHz) or Z520PT (1.33 GHz)

System Board:
RM820

System Memory:
1 x 200-pin DDR2 SODIMM max. up to 2 GB

I/O Interface Rear

2 x RS-232/422/485 (COM 1/2)
1 x 10/100/1000Mbps Ethernet with Magnetic Isolation Protection
2 x USB 2.0
4 x PoE (IEEE802.3af)
1 x VGA
1 x DC power input with terminal block


Storage
1x CF-slot onboard

Power Supply
48VDC

Environment Specifications

Operating Temperature -40°C ~ 70°C
Storage temperature: -45°C ~ 85°C
Humidity: 5% ~ 95% (non-condensing)

Safety: CE, Please see datasheet for other

Mechanical

Construction: Steel /aluminium housing

Mounting: DIN rail

Dimension: 81 mm (W) x 110 mm (D) x 135 mm (H)

Weight: 1.8 kg

For more information see datasheet.
