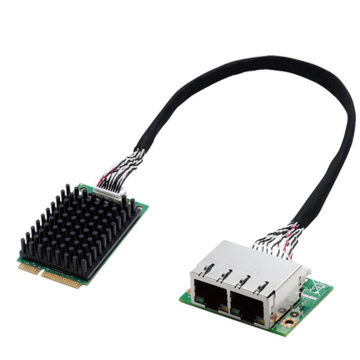

RealTime Ethernet Fieldbus Master Mini-PCIe Card

SKU
RTE_Fieldbus_mpcie-01
Lead time 14-22 days
Industrial Real Time Ethernet Fieldbus Master Mini-PCIe Card



  • Support PROFINET, EtherNet/IP, EtherCAT Master Interface(depends on the downloaded firmware)
  • Real Time Ethernet Communication
  • Mini-PCIe Form Factor
  • Driver Support for Windows, WinCE, RTX, QNX, VxWorks, Linux
  • Fully Compatible with PROFINET, EtherNet/IP, EtherCAT Controllers and I/O Modules
  • 2 x RJ45 Connectors
  • User Friendly Configuration Utility





PROFINET Master I/O Devices max.: 128 Cyclic Data max.: 11472 Bytes Acylic Data : Read/Write Record max 4096 Bytes/Request Functions:
Alarmtreatment
DCP
Minimum cycle time 1 ms
EtherNet/IP Cyclic Data max.: 11472 Bytes Unscheduled Data max.: 504 Bytes per Telegram Functions:
Max. 64 connections
Cyclic Connection
UCMM class 3 supported
DHCP, BOOTP
Server Service
Get_Attribute_Single/All
Set_Attribute_Single/All
EtherCAT Master Slaves max.: 200 Cyclic Data max.: 11520 Bytes Acylic Data: CoE (CANopen over EtherCAT)
Up-/Download max. 1500 Bytes
Functions:
Get OD List
Emergency
Topology Line
