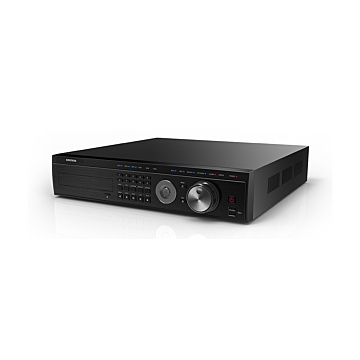

Rifatron NVR/DVR HD6-532 16TB
SKU
rftr-hd6-532
Lead time 8-16 days
EUR1,990.00 EUR1,604.84
32-ch recorder. Supports 32x HD-TVI/CVI/AHD/analog input. Max 16x IP camera. Full-HD record resolution 1080p@480fps. HDD 16TB (16000GB) included. Internet/HDMI/VGA/USB/eSATA/Audio/RS-485. Alarm in/out.
Package includes
1x Rifatron NVR/DVR HD6-532 16TB
1x AC-power adapter
1x Software and manual CD
1x AC-power adapter
1x Software and manual CD
Specifications
| Model | HD6-532 | |
| System | OS | Embedded Linux |
| Language | Chinese, Chinese(S), Dutch, English, French, German, Hebrew, Hungari, Italian, Japanese, Korean, Latvian, Persian, Polish, Portuguese, Russian, Spanish, Sweden, Turkish, Arabic | |
| Time Accuracy | 5ppm (12.5sec/month) | |
| Time Sync | NTP, GMT, DST, Time Server | |
| User | 15 Users (Admin., User1 ~ User14) | |
| Camera | IP Camera | ONVIF Profile S |
| Other Camera | HD-TVI, AHD, CVI, Analog SD | |
| Video | System | PAL/NTSC |
| Input | 32 BNC | |
| IPC Input | 16 IPC | |
| Output Interface | HDMI, VGA, BNC | |
| Spot | HD-TVI spot, SD spot | |
| Audio | Input Interface | 16 RCA |
| Output Interface | 1 HDMI, 1 RCA | |
| Video Recording | Compression | H.264 |
| Speed | 15fps/ch, 30fps/ch | |
| Resolution | TVI(720p, 1080p, 3MP, 4MP), AHD(720p,1080p, 3MP, 4MP), CVI(720p, 1080p), Analog SD(960H), IP(Max. 4MP) | |
| Quality | 5 Levels | |
| Audio Recording | Compression | G.711u |
| Playback | Search | Go to first rec. time, Go to last rec. time, Go to last search time, Calendar, Log viewer, Smart search, Multi-time & day search, Event search |
| Mode | Event only playback, Backward, Pause, Frame by frame, Speed up (x1 ~ x32, x300) |
|
| Network | Interface | RJ45 (Ethernet 10/100/1G) x 2 |
| Compression | H.264 | |
| Speed | Max. 1080p 15fps/ch | |
| Resolution | Max. 2MP(1080p) | |
| Backup | Interface | USB, Network |
| Format | RMS, AVI | |
| Alarm | Post-Alarm | 5sec~5min |
| Motion Grid | 32 x 24 | |
| Alarm Action | E-mail, Event Popup, Buzzer, Relay, PTZ Preset,Remote VMS, Front LED |
|
| Input / Output | 16/4 – NC/NO | |
| Display | HDMI | Full HD, XGA |
| TV | SDTV(720x480) | |
| Mode | 32/16/9/4/1/SEQ/BIG - LIVE, 32/16/9/4/1 - P.B 16/9/4/1/SEQ/BIG - LIVE, 16/9/4/1 – P.B |
|
| External Interface | PTZ / Keyboard | 2 RS485 - Terminal Block |
| ATM / POS | RS232C - Terminal Block, Ethernet POS | |
| Storage | Primary | 6 HDD |
| External | 2 eSATA | |
| General | Power Supply | 90~250V, 50/60Hz |
| Consumption | 80W | |
| Operating Temp | 5 ~ 40?C | |
| Humidity. | 10 ~ 80% | |
| Weight w/o HDD | 8Kg | |
| Dimension | 440 x 88 x 430 mm | |
| Certification | CE, FCC, RoHS Compliance | |
| Video signal | Analog (960H), HD-TVI, HD-CVI, AHD, IP |
|---|
