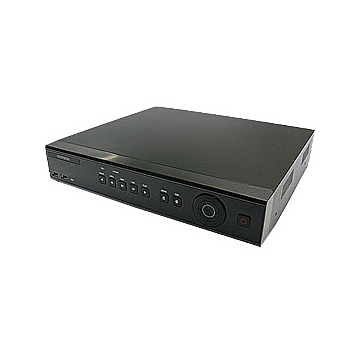

Rifatron DVR SH1-04 500GB

SKU
rftr-sh1-04
Not available
420.00EUR 338.71EUR
Rifatron PRO DVR 4-channels. 960H and H.264 technology for 960x576 recording. 500GB HDD. Internet/LAN remote view. Motion detection. VGA, HDMI, USB, RS-485 and alarm connectors. Audio in and out. NAS/USB backups.
Details
High quality and reliable 4-channel 960H DVR with professional features.

*500GB HDD space.
*Advanced playback search and viewing.
*960x576 recording.
*4-channel operation.
*Programmable recording.
*Record motion, scheduled and auto.
*H.264 video compression.
*HDMI and VGA-connectors.
*USB-connector for backups.
*Internet/LAN connection (RJ-45).
*NAS-backups to FTP-server.
*E-mail alarms.
*Built-in web server, remote control with IE browser and smart phone.
*1x RCA audio input and output.
*Alarm input and output.
*Dimension only 340x59x300mm.
Package includes
1x Rifatron DVR SH1-04 500GB
1x IR Remote
1x AC power adapter
1x Manual
1x Remote view software CD
Specifications
Model SH1-4
Type Standalone DVR
OS Embedded Linux - Built in Flash Memory
Video Input 4 BNC
Video Output HDMI, VGA, BNC
Audio Input 4 RCA
Audio Output 1 RCA, HDMI
Recording Compression H.264 / G.711U
Recording Speed Max 100fps
Recording Resolution Max 960 x 576
Recording Mode Continuous, Event (Sensor, Motion, Audio), Schedule
Storage Internal, max 1HDD 2TB
Sensor input/output 4pcs input/1pc TTL output
Backup USB, Network, NAS
Network access Ethernet 10/100/1000 – RJ45
PTZ access RS485
System operation Front button, Mouse, IR remote, keyboard controller, network
System Upgrade USB2.0, network
Network Interface System automation (by CMS) NTP supported CMS/Web browser/PDA/Mobile viewer
Others Automatic e-mail Power DC12v/3.3A Operating temp 5-40C Dimensions 340x59x300mm
More Information
Video signal Analog (960H)
