RSC100

SKU
RSC100
Lead time 21-30 days

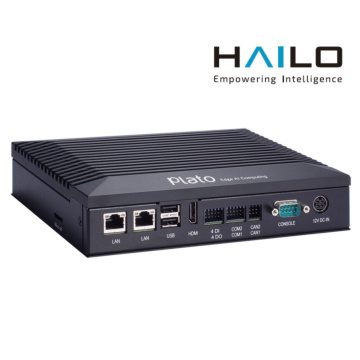

ARM-based Fanless Edge AI Computer with Hailo-8™ Processor, HDMI, GbE LAN, COM, DIO, CANbus

  • Hailo-8™ AI processor, up to 26 TOPS
  • Advanced AI performance, ideal for smart city applications
  • Dual GbE for GigE camera and LiDAR connectivity
  • Dual COM/Dual CANbus/8-CH DI/DO
  • Supports Wi-Fi/Bluetooth/5G/LTE wireless connection
  • Wide operating temperature from -20°C to +70°C
  • Supports Linux operating system
System
Processor NXP® i.MX 8QuadMax processor
GPU SoC
Chipset SoC
Storage Onboard 16GB eMMC
1 x M.2 Key M 2280 SATA SSD slot
1 x Micro SD slot
Memory 4GB LPDDR4 onboard
AI Accelerator Hailo-8™ SoC, up to 26 TOPS
I/O Ports
USB 2.0 2 x USB 2.0
USB 3.0 -
Serial 2 x RS-232/422/485
Video 1 x HDMI 2.0 with 4K2K supported
Ethernet 2 x 10/100/1000 Mbps Ethernet
Other Ports 4-CH DI
4-CH DO
2 x CANbus
Expansion
Expansion Interface 2 x Full-size PCI Express Mini Card slot
1 x M.2 Key B 3052 slot
1 x SIM slot
Operating System
Operating System Yocto Linux 3.0
Power
DC Input / Source Voltage Power Input Voltage 12VDC
Operating Temperature
Operating Temperature
-20°C to 70°C
Humidity Range 10% ~ 95%, non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 2.1 kg
Dimensions 200 x 150 x 45 mm
Enclosure
Bezel
Material Aluminum / Steel
Mounting Wall mounting kit
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE, FCC Class A
More Information
CoolingFanless
