SCD3685-I
SKU
SCD3685-I
Lead time 21-30 days

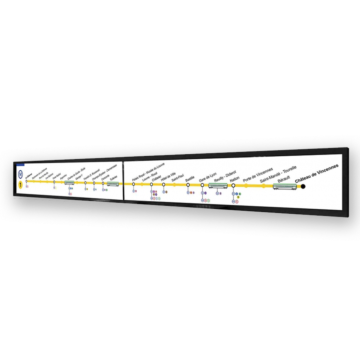

36.8” Resizing LCD,1000 nits LED backlight, 1920 x 358 ultra-wide aspect ratio 16:3
- 36.8" Bar Display
- Side-by-Side Ultra-Wide Screen (16 : 3)
- Sunlight Readable, 1000nits
- LED Backlight
- Display Area: 1838.6(H)x171.4(V) mm
- MTBF: 100,000 hours
| Display | |
| Screen Size | 36.8" TFT LCD |
| Screen Resolution | 1920x358 |
| Display Ratio | 16 ::3 |
| Contrast Ratio | 4500 ::1 |
| Brightness | 1000 nits |
| Viewing Angle | 178°(H),178°(V) |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | - |
| I/O Ports | |
| Video |
1x VGA |
| Other Ports | |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | 230V AC |
| Multimedia | |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 18 kg |
| Dimensions | 1890.4 x 216 x 66.6mm |
| Enclosure | |
| Bezel size |
21.3/21.3/19.4/19.4 |
| Material | |
| Mounting | VESA 300x180 |
| Protection | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
| Signal input | VGA, DVI-D, HDMI |
|---|
