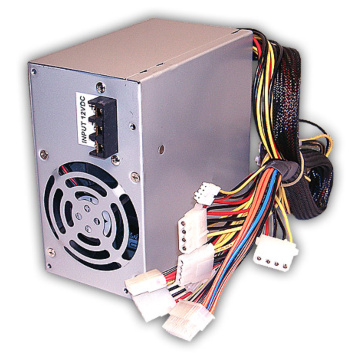

STC-24-450W DC-DC 24V ATX PS2 PSU

SKU
STC-24450
In Stock
450W DC-DC virtalähde. Standardin PS/2 kokoinen. DC 18-36V input. P4-tuki.
Details
400W DC-DC PS2 standard size Power Supply.
24V DC input.

* Wide DC Input Range (DC 18-36V)
* Design to meet ATX12V Standard
* Build-in Thermal Fan Speed Control
* Short circuit protection
* Over Voltage protection

Usage:
*Industrial PC
*Car computing
*Telecom
*Marine
*Aerospace

High quality power supply for 24V systems.
Package includes
1x SER450W DC-DC 24V ATX
Specifications
ENVIRONMENTAL CONDITIONS:
●    Cooling:         Forced Air-cooling, 80x80x25 mm Fan x 1 (Two Ball Bearing mode)
●    Operating Temperature:    0пїЅC ~ +60пїЅC
●    Operating Humidity:    20%~85% RH. (Non condensing)
●    Storage Temperature:    -20пїЅC~+80пїЅC
●    Storage Humidity:    10%~90% RH. (Non condensing)
●    Operating Altitude:    10M Below Sea level and 3000M Above Sea level

DC INPUT CHARACTERISTICS:
●    Input connector type    30A/ 300V UL Approved Gold plated 3-Pin Terminal 1.2t/3-Pin Terminal
●    Input Current     30A/20A(max.)    @Full Load & Low Line
●    Inrush Current     Less than 10A Cold start @25пїЅC ambient

DC OUTPUT CHARACTERISTICS:

OVERALL PERFORMANCE:
●    Efficiency             70% typical @24V DC Full Load
●    Power Good Signal        TTL Compatible signal, on delay 100~500ms, off delay 1ms min
●    Short Circuit Protection (SCP)    All output equipped with SCP (shutdown and latch off)
●    Over Power Protection (OPP)     Peak power protected to 130%пїЅ10% of continuous rated power (shutdown and latch off)
●    Over Voltage Protection (OVP)     +5V, +12V & +3.3V

RELIABILITY:
●    MTBF (Mean Time Between Failure):     >70,000 hours @max. Load, 24V DC & 25пїЅC ambient
●    Safety Standards:        Meet UL60950 and TГјV EN60950
●    EMI Compatibility (EMC) Standard:    FCC Part 15 Class B, CISPER22 (EN55022) Class B (CE mark)
●    Dielectric Withstand:        Input to Output: 1500Vac for 1second
●    Dielectric Withstand:        Input to Frame ground: 1500Vac for 1second
●    Leakage Current:        <0.005mA @24VDC

Output Connector specific:
●    ATX 24 Pin
●    +24V(P4) 4 pin
●    Peripheral 4 pin
●    FDD 4 pin
●    Serial ATX
●    Process 8 pin

Standard Output Cable Length:
●    520mm

Power chassis Dimension:
●    140(L) x 150(W) x 86(H) mm

Net Weight:
●    2.3 kgs

Gross Weight:
●    2.6~ 3.3kgs
More Information
TypeATX PS2
Input Voltage24V DC
Output voltageATX
Power450W
ApplicationsIndoor
