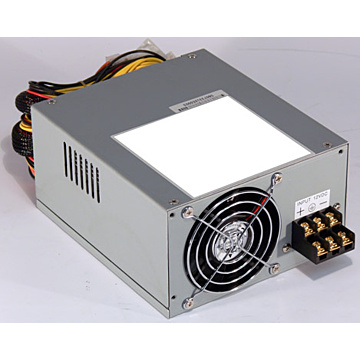

SER500W DC-DC 12V ATX

Lead time 8-16 days
SKU
SER500W12
500W DC-DC ATX Power supply. PS/2 form factor. DC 9-18V Input. P4-support.
Details
500W DC-DC PS2 standard size Power Supply.
12V DC input.

* Wide DC Input Range (DC 9-18V)
* Design to meet ATX12V Standard
* Build-in Thermal Fan Speed Control
* Short circuit protection
* Over Voltage protection

Usage:
*Industrial PC
*Car computing
*Telecom
*Marine
*Aerospace

High quality power supply for 12V systems.
Package includes
1x SER500W DC-DC 12V ATX
Specifications
ENVIRONMENTAL CONDITIONS:
● Cooling: Forced Air-cooling, 80x80x25 mm Fan x 1 (Two Ball Bearing mode)
● Operating Temperature: 0°C ~ +60°C
● Operating Humidity: 20%~85% RH. (Non condensing)
● Storage Temperature: -20°C~+80°C
● Storage Humidity: 10%~90% RH. (Non condensing)
● Operating Altitude: 10M Below Sea level and 3000M Above Sea level

DC INPUT CHARACTERISTICS:
● Input connector type 50A/ 300V UL Approved Gold Plated Brass 1.2t/3-Pin Terminal
● Input connector type 100A/ 300V UL Approved Gold Plated Brass 1.2t/3+3-Pin Terminal
● Input Current 50A/20A(max.)@Full Load & Low Line
● Inrush Current Less than 10A Cold start @25°C ambient

DC OUTPUT CHARACTERISTICS:

OVERALL PERFORMANCE:
● Efficiency 65% typical @12V DC Full Load
● Power Good Signal TTL Compatible signal, on delay 100~500ms, off delay 1ms min
● Short Circuit Protection (SCP) All output equipped with SCP (shutdown and latch off)
● Over Power Protection (OPP) Peak power protected to 130%±10% of continuous rated power (shutdown and latch off)
● Over Voltage Protection (OVP) +5V, +12V & +3.3V

RELIABILITY:
● MTBF (Mean Time Between Failure): >70,000 hours @max. Load, 12V DC & 25°C ambient
● Safety Standards: Meet UL60950 and TüV EN60950
● EMI Compatibility (EMC) Standard: FCC Part 15 Class B, CISPER22 (EN55022) Class B (CE mark)
● Dielectric Withstand: Input to Output: 1500Vac for 1second
● Dielectric Withstand: Input to Frame ground: 1500Vac for 1second
● Leakage Current:
Output Connector specific:
● ATX 24 Pin
● ATX 12V(P4) 4 pin
● HDD, DVD 4 pin
● FDD 4 pin
● Serial ATX
● Process EPS 8 pin

Standard Output Cable Length:
● 550mm

Power chassis Dimension:
● 150(W) x 170(L) x 86(H) mm

Net Weight:
● 2.67 kgs

Gross Weight:
● 2.6~ 3.3kgs
