Siemens MC35i Terminal

Not available
SKU
Siemens_MC35i
EUR299.00
Siemens / Cinterion robust dual-band GSM unit with GPRS high-speed data transfer capabilities. Ultra-compact and always-on.
Details
This product is no longer available.
Product replaced with .

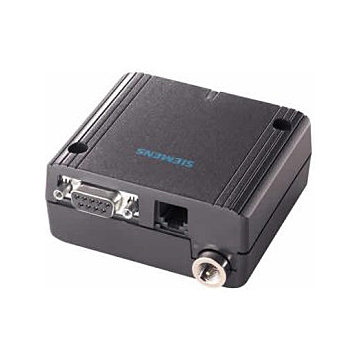

The MC35i Terminal offers high level GSM/GPRS data transfer features in compact plug-and-play housing.

Main features:

* Developed primarily for the M2M market segment
* Plug-and-play functionality and state-of-the-art GPRS features
* GSM dual band (900/1800 MHz) and GPRS class 8
* Support for the Packet Broadcast Control Channel (PBCCH)
* Broad DC 8-30Vinput voltage range (DC 8-30V)
* Standardized interfaces
* Small size, easy to integrate into all kinds of machines
* Integrated SIM card holder
* All-in-one solution enabling voice, data, SMS and fax communication
Package includes
1 x Siemens/Cinterion MC35i Terminal
1 x Antennna
1 x RS-232 serial port cable
1 x Power cable (for DC 8-30V use, no power adapter)

Options
1x AC power adapter (AC 230V / DC 12V)
Specifications
General features

* Dual-Band GSM 900/1800 MHz
* GPRS multi-slot class 8
* Compliant to GSM phase 2/2+
* Output power:
- Class 4 (2 W) for EGSM900
- Class 1 (1 W) for GSM1800
* Control via AT commands
* SIM Application Toolkit
* Supply voltage range: 8 ... 30 V
* Temperature range
- Normal Operation: -20°C to +70°C
- Restricted Operation: -25°C to +75°C
- Switch off: +80°C
- Storage: -40°C to +85°C
* Dimensions: 65 x 74 x 33 mm
* Weight: 130 g

Specification for GPRS data transmission

* GPRS class 8: max. 86 kbps (DL)
* Mobile station class B
* PBCCH support
* Coding schemes CS 1-4

Specification for CSD data transmission

* Up to 14.4 kbit/s
* V.110
* Non-transparent mode
* USSD support

Specification for SMS

* Point-to-point MO and MT
* SMS cell broadcast
* Text and PDU mode

Specification for fax

* Group 3, class 1, 2

Specification for voice

* Triple-rate codec for HR, FR and EFR
* Basic hands-free operation
* Echo cancellation
* Noise reduction

Interfaces

* Antenna connector FME (male)
* Plug-in power supply
* Handset audio interface
* Mini-SIM card reader
* V.24/V.28 interface on the 9-terminal sub-D socket
* Operating status LED

For further information please download the datasheet.
Files and drivers

Siemens MC35i GSM/GPRS terminal user guide.
