SSD2203-Y

SKU
SSD2203-Y
Lead time 21-30 days

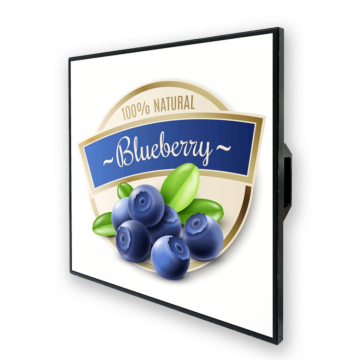

22” TFT LCD, 500 nits, LED Backlight, 1920x1920

  • 22" square-shaped LCD (aspect ratio of 1:1)
  • Slim bezel
  • Long lasting 24/7 operations
  • MTBF: 100,000 hours
Display
Screen Size 22" TFT LCD
Screen Resolution 1920x1920
Display Ratio 1 ::1
Contrast Ratio 650 ::1
Brightness 1000 nits
Viewing Angle 178°(H),178°(V)
Number of Colors 16.7M
Touch Screen
Touchscreen -
I/O Ports
Video

2x DVI-D
1x HDMI
1x DisplayPort

Other Ports
Operating System
Operating System
Power
DC Input / Source Voltage 12V DC input

Multimedia

Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 4.5 kg
Dimensions 412.4x412.4x51.6mm
Enclosure
Bezel size
6.9/6.9/6.9/6.9 mm
Material
Mounting VESA 200x200
Protection
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
