SSD2845-E

SKU
SSD2845-ENB-G21
Lead time 21-30 days

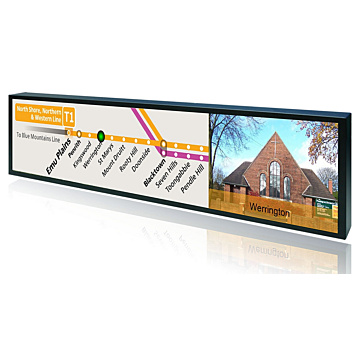

28" Resizing LCD, 1000 nits LED backlight, 1920x357

  • 28" resizing LCD
  • Resizing display (aspect ratio of 16:3)
  • Sunlight readable, high brightness (1,000 nits)
  • Resolutions: 1920 x 357
  • Wide viewing angle of 178° (H), 178° (V)
  • EN50155 certified
  • MTBF: 70,000 hours
Display
Screen Size 28" TFT LCD
Screen Resolution 1920x357
Display Ratio 16 ::3
Contrast Ratio 6500 ::1
Brightness 1000 nits
Viewing Angle 178°(H),178°(V)
Number of Colors 16.7M
Touch Screen
Touchscreen -
I/O Ports
Video

1x VGA
1x DVI-D

Other Ports
Operating System
Operating System
Power
DC Input / Source Voltage 12V DC input

Multimedia

Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution
Dimensions / Weight
Weight (kg) 5.6 kg
Dimensions 745.6x183.3x57.5mm
Enclosure
Bezel size
24.9/24.9/22.1/22.1 mm
Material
Mounting VESA 75x75
Protection
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
