SSD3525-Y

SKU
SSD3525-Y
Lead time 21-30 days

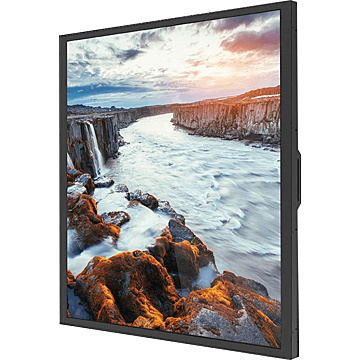

35.2” Resizing LCD, 1000nits LED backlight, 1850x2160

  • 35.2" square-shaped LCD high brightness (1,000 nits)
  • Square display (aspect ratio of 7.7 : 9)
  • Low power consumption
  • Long lasting 24/7 operations
  • MTBF: 100,000 hours
Display
Screen Size 35.2" TFT LCD
Screen Resolution 1850x2160
Display Ratio 7.7 ::9
Contrast Ratio 6200 ::1
Brightness 1000 nits
Viewing Angle 178°(H),178°(V)
Number of Colors 1.07B
Touch Screen
Touchscreen -
I/O Ports
Video

1x DVI-D
1xHDMI
1x DisplayPort

Other Ports
Operating System
Operating System
Power
DC Input / Source Voltage 24V DC input

Multimedia

Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution
Dimensions / Weight
Weight (kg) 15.3 kg
Dimensions 633 x 714.4 x 74.7mm
Enclosure
Bezel size
15.7/18.4/25.1/25.1mm
Material
Mounting VESA 400x200, 400x300
Protection
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
