SSD4221-Y

SKU
SSD4221-Y
Lead time 21-30 days

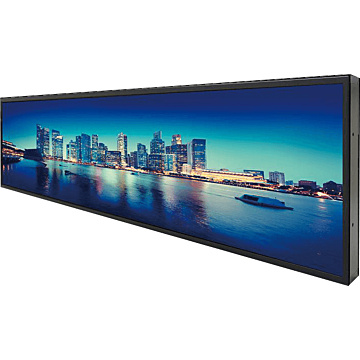

42.2" Stretched LCD, 3000 nits LED Backlight , 1920 x 480, ultra-wide

  • 42.2” Stretched LCD
  • Resolutions: 3840 x 1076
  • Resizing display (aspect ratio of 16 : 4)
  • Low Power Consumption
  • MTBF: 100,000 hours
Display
Screen Size 42.2" TFT LCD
Screen Resolution 1920x480
Display Ratio 16 ::4
Contrast Ratio 4600 ::1
Brightness 3000 nits
Viewing Angle 178°(H),178°(V)
Number of Colors 16.7M
Touch Screen
Touchscreen -
I/O Ports
Video

1x DVI
1x HDMI
1x DisplayPort

Other Ports
Operating System
Operating System
Power
DC Input / Source Voltage 24V DC input

Multimedia

Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution
Dimensions / Weight
Weight (kg) 10.5 kg
Dimensions 1072.8 x 296.9 x 66.1 mm
Enclosure
Bezel size
18.5/18.5/16.6/16.6 mm
Material
Mounting VESA 400x100
Protection
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
