SSH5665-I

SKU
SSH5665-I
Lead time 21-30 days

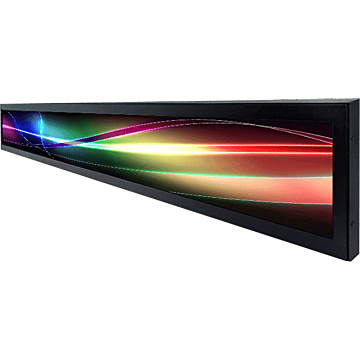

56.6” Stretched LCD, 2500 nits LED Backlight , 3840x456, ultra-wide

  • 56.6" Sunlight readable, high brightness (2,500 nits)
  • Stretched display (aspect ratio of 16 : 1.9)
  • High contrast ratio (7900:1)
  • OpenFrame type
  • Long lasting 24/7 operations
  • MTBF: 100,000 hours
Display
Screen Size 56.6" TFT LCD
Screen Resolution 3840x456
Display Ratio 16 ::1.9
Contrast Ratio 7900 ::1
Brightness 2500 nits
Viewing Angle 178°(H),178°(V)
Number of Colors 1.07B
Touch Screen
Touchscreen -
I/O Ports
Video

1x DVI-D
1x HDMI
1x DisplayPort

Other Ports
Operating System
Operating System
Power
DC Input / Source Voltage 24V DC input

Multimedia

Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution
Dimensions / Weight
Weight (kg) 6.1 kg
Dimensions 1462.4x 203.3x 26.3mm
Enclosure
Bezel size
17.0/16.96/16.96/16.96 mm
Material
Mounting
Protection
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
