Lead time 21-30 days

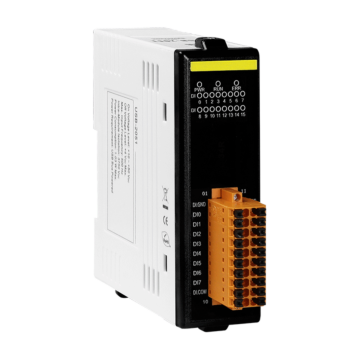

USB I/O Module with Isolated 16-ch DI (Dry, Wet)

• 16-channel sink type digital input
• Dry Contact and Wet Contact Selectable via Wire Connections
• All Channels can be used as 16-bit Counters
• Wide operating temperature range:-25°C~+75°C
• 2500 VDC Intra-Module isolation
• RoHS compliant
• USB 1.1/2.0 Full-Speed (12Mbps)
• No external power supply (USB Bus Powered)
• Plug-and-Play without driver
• Lockable USB cable
• Support firmware update via USB
• Utility tool for module configuration and I/O testing easily and quickly
• PWR/RUN/ERR LED indicators
• Built-in dual watchdog (hardware/software)
• Provide API library (VC/VB/BCB/.NET)

More Information
I/ODigital I/O
