Lead time 21-30 days

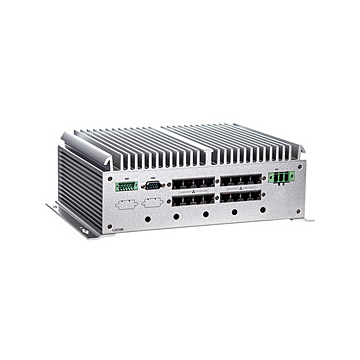

Fanless Embedded System with 7th/6th Gen Intel Core for Vehicle and Railway PC, 16x PoE Lan
* CE, FCC certified, E-Mark, EN 50155 compliant
* 7th/6th gen Intel® Core™ & Pentium® processor (LGA1151 up to 65W) with Intel® Q170
* Wide operating temperatures from -40°C to +70°C
* Up to 16 RJ-45 PoE GbE LAN ports
* 9 to 36VDC power input, ACC ignition supported
* Two/four 2.5" SATA drive, 1 mSATA
* Intelligent solution of vehicle power management (ACC ignition)
Processor 7th gen Intel® Core™, 35W
6th gen Intel® Core™, 35 ~ 65W
CPU Performance
Security Hardware
Chipset Intel® Q170
Storage 4 x 2.5" swappable SATA drive (15 mm)
Intel® RAID 0/1/5/10
1 x mSATA (use 1 PCI Express Mini Card slot)
Storage Support
Memory 2 x DDR4 SO-DIMM slot, up to 32GB
Memory (RAM)
I/O Ports
USB 2.0
USB 3.0 4x USB 3.0
Serial 2 x DB9 RS-232/422/485
Video 1 x VGA, 1 x DVI-D, 1 x HDMI
Ethernet 16 x PoE GbE 802.3af/802.3at supported
16-port PoE power output
120W (default), maximum 200W (BIOS setting)
Other Ports Mic-in/Line-out
1 x 6-in/2-out isolated DIO
Expansion Interface 2 x full-size PCI Express Mini Card slot
2 x half-size PCI Express Mini Card slot
2 x external accessible SIM Card slot
Operating System
Operating System Windows® 7/8/10, Linux
DC Input / Source Voltage DC-input: 9 ~ 36 VDC, ACC ignition, typical 24 VDC
Operating Temperature
Operating Temperature -40°C ~ +70°C with W.T. SSD
Humidity Range 10% ~ 95%, non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 5.0 kg
Dimensions 280 x 210.5 x 99.2 mm with 4 SATA, w/o wall-mount
Material Aluminum / Steel
Mounting Desk / Wall mounting
Peripherals & Devices
Extra Features
Certification CE, FCC certified, E-Mark, EN 50155 compliant
