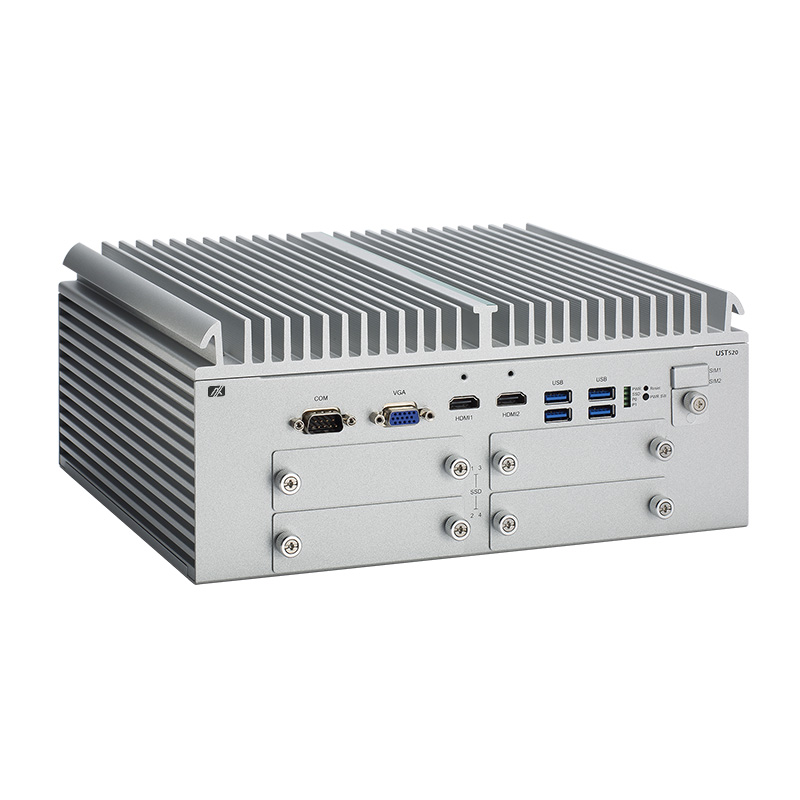

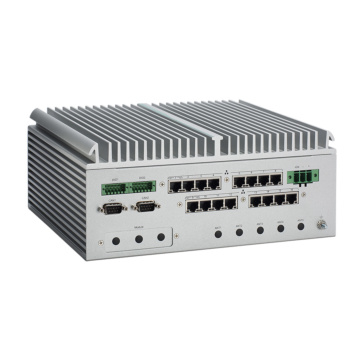

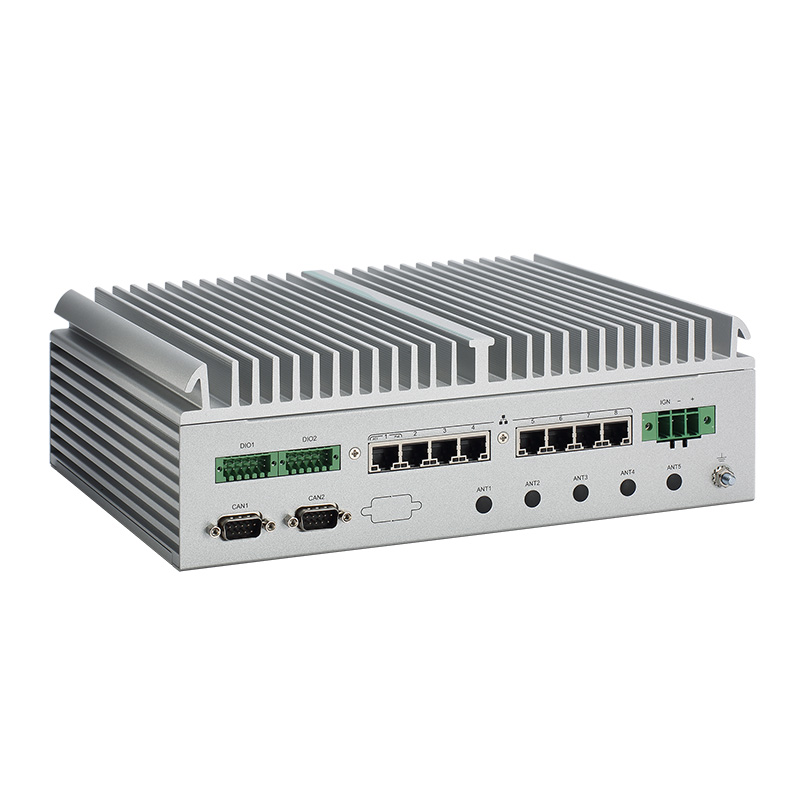

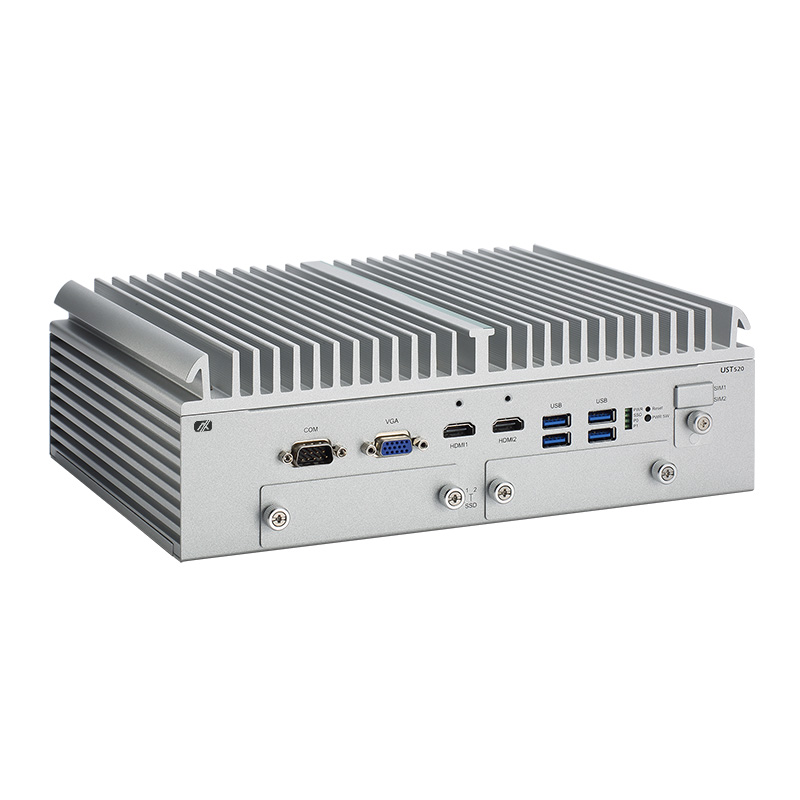

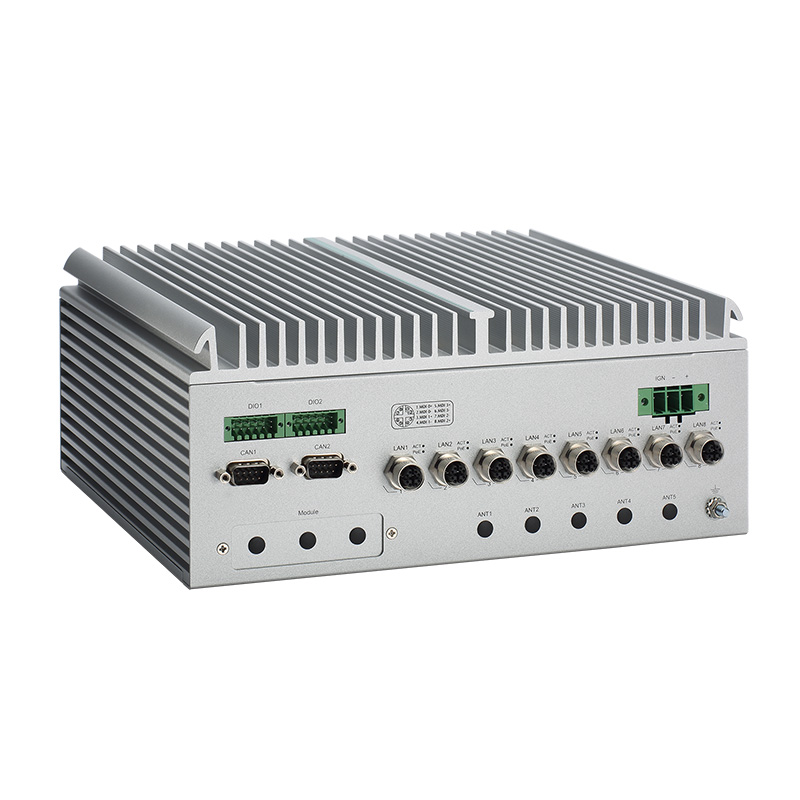

Fanless Embedded System with LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® Processor, Intel® R680E, 9 to 60 VDC for In-vehicle Intelligent Surveillance Application
- CE, FCC, E-Mark and R118 certified
- LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (up to 65W) with Intel® R680E
- Fanless and wide operating temperatures from -40°C to +70°C
- Up to 8/16 GbE PoE port by M12/RJ-45 connector type
- Supports M.2 Key B and M.2 Key E for wireless communication module
- Intelligent solution of vehicle power management (smart ignition)
- Convenient swappable HDD/SSD slots and flexible I/O windows
| System | |
| Processor | LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (CPU TDP max. up to 65W) |
| Security Hardware | TPM 2.0 |
| Chipset | Intel® R680E |
| Storage | 2 x 2.5" 15 mm swappable SATA drive with 2 SATA,
Intel® RAID 0/1 supported 4 x 2.5" 15 mm swappable SATA drive with 4 SATA, Intel® RAID 0/1/5/10 supported |
| Memory | 2 x 262-pin DDR5-4800 SO-DIMM, up to 64GB |
| Audio | N/A |
| Graphics | 1 x VGA (supports up to 1920 x 1200 @60Hz) 2 x HDMI (supports up to 4K/2K @50Hz) |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.2 | 4 x USB 3.2 Type A |
| Serial | 1 x DB9 serial console or RS-232 with 5V/1A (on 9th pin) |
| Video | 1 x VGA 2 x HDMI |
| Ethernet | UST520-RLS-A 8 x PoE RJ-45 2.5GbE LAN with 2 SATA (Intel® I226-IT) UST520-RLS-B 16 x PoE RJ-45 2.5GbE LAN with 4 SATA (Intel® I226-IT) UST520-RLS-C 8 x PoE M12 X-code 2.5GbE LAN with 4 SATA (Intel® I226-IT) |
| Other Ports | 2 x DB9 with 2 x CANBus 2.0 A/B, SocketCAN supported
2 x terminal block isolated 6-in/2-out DIO (isolation voltage: 2 kV) 1 x Reset button 5 x Antenna opening 2 x External accessible SIM card socket 1 x Flexible I/O window TPM 2.0 |
| Expansion | |
| Expansion Interface | 1 x Full-size mPCIe (PCIe/USB) for LTE/GPS/Wi-Fi/IO
expansion 1 x Half-size mPCIe (USB) for GPS 1 x M.2 2280/2242 Key M (PCIe x4/SATA) for NVMe 1 x M.2 3052 Key B (USB 3.0/2.0) for 5G/LTE 1 x M.2 2230 Key E (PCIe/USB) for Wi-Fi/BT |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 1 x Terminal block, 12/24/48 VDC with smart ignition |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T SSD/DRAM |
| Humidity Range | 0% ~ 95%, non-condensing |
| Shock | |
| Vibration | 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random,
operating) 1 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating) 2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating) |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive |
| Dimensions / Weight | |
| Weight (kg) | 7.3 kg |
| Dimensions | 8RJ 2SATA SKU: 280 x 210.5 x 89 mm 8M12 4SATA SKU: 280 x 210.5 x 117 mm 16RJ 4SATA SKU: 280 x 210.5 x 117 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Certification | |
| Certification | CE (Class A), FCC (Class A) E-Mark and R118 certified |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Cooling | Fanless |
| Operating Temp | Wide Temp -40..70C |
