UTC-532FP
SKU
UTC-532FP-ATB0E
Lead time 21-30 days

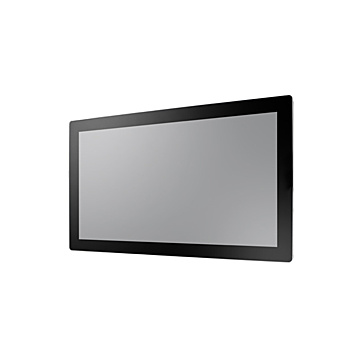

31.5" Ubiquitous Touch Computer with Intel® Core i5-6300U
Details
* Low power consumption and fanless design
* Built-in Intel® Core™ i5-6300U
* 31.5" monitor with 16:9 widescreen display
* IP65-rated front panel for water and dust resistance
* Aluminum frame with side groove design for flexible peripheral installation
* Support both landscape and portrait screen orientation
* Rich I/O and diverse peripheral options
* VESA 200 mm standard mounting holes for varied mounting demands
* Support Advantech WISE-PaaS/RMM
* Built-in Intel® Core™ i5-6300U
* 31.5" monitor with 16:9 widescreen display
* IP65-rated front panel for water and dust resistance
* Aluminum frame with side groove design for flexible peripheral installation
* Support both landscape and portrait screen orientation
* Rich I/O and diverse peripheral options
* VESA 200 mm standard mounting holes for varied mounting demands
* Support Advantech WISE-PaaS/RMM
Specifications
| System | |
| Processor | Intel® Core i5-6300U |
| CPU Performance | 2.4GHz (dual-core) |
| Security Hardware | |
| Chipset | |
| Storage | 1 x SATA SSD |
| Storage Support | |
| Memory | 2 x SO DIMM DDR3L 1600MHz up to 16 GB |
| Memory (RAM) | 4GB |
| Display | |
| Screen Size | 31.5" Full HD TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | |
| Brightness | 300 nits |
| Viewing Angle | -89~89(H); -89~89(V) |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 2x USB 2.0 |
| USB 3.0 | 2x USB 3.0 |
| Serial | 2x RS-232 |
| Video | 1x VGA, 1x HDMI |
| Ethernet | 2 x RJ45 GbE |
| Other Ports | Audio Line-out x 1, Mic-in x 1 |
| Operating System | |
| Operating System | Windows 10 Pro, Windows 10 IoT, Windows 7 Pro |
| Power | |
| DC Input / Source Voltage | 230V AC |
| Power Management | |
| Expansion Slots | |
| Multimedia | |
| Integrated Speakers | 2x 3 Watt Speaker |
| Operating Temperature | |
| Operating Temperature | 0ºC to 40ºC (32ºF to 122ºF) |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 18 kg |
| Dimensions | 764.50 x 459 x 62.50 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum |
| Mounting | VESA 200 |
| Note * | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
