ViTAM-117
SKU
ViTAM-117-x
Lead time 21-30 days

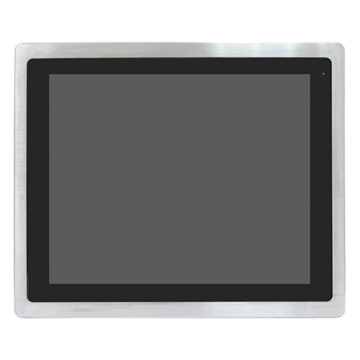

- 17.0” New Generation Stainless Steel Display
- True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
- IP66/IP69K Rated with M12 Connectors
- Support Resistive Touch, Projected Capacitive Touch, and Glass
- Touch on/off Button on the Side Edge for Hygienic Cleaning
- Support Ergonomic Versatile Mounting: Yoke Mounting /Space-saving
- VESA 100 x 100 mm Mounting
| Display | |
| Screen Size | 17.0" TFT LCD |
| Screen Resolution | 1280x1024 |
| Display Ratio | 4 ::3 |
| Contrast Ratio | 800 ::1 |
| Brightness | 350 nits |
| Viewing Angle | |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Protective Glass / 5-wire Resistive/PCAP |
| I/O Ports | |
| Video | 1x VGA, 1x HDMI (M12 connector) |
| Other Ports | USB Touch |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 9-36V DC 230V AC with adapter |
| Power Management | |
| Multimedia | |
| Integrated Speakers | (option) |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 7.5 kg |
| Dimensions | 432 x 358 x 55mm |
| Enclosure | |
| Bezel | |
| Material | Stainless Steel |
| Mounting | VESA |
| Protection | Total IP66 |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
| Display Size | 17" |
|---|---|
| Signal input | VGA, HDMI |
