ViTAM-917

SKU
ViTAM-917
Lead time 21-30 days

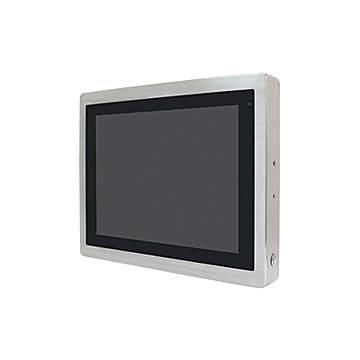

17" Fanless Stainless Steel Panel PC with Intel Core i3/i5 CPU, 4GB DDR3 RAM, Touch option, IP66 chassis, 9~36VDC input with adapter
Details
* 17" Industrial Stainless Steel Panel PC
* Flat Front Panel Touch Screen/Anti-reflective Glass
* IP66/IP69K chassis
* Fanless Design
* Intel 4th Gen. Core i3/i5 CPU built-in
* Onboard 4GB DDR3L 1600 MHz
* 9~36V DC wide-ranging power input
Specifications
LCD Specifications
17" TFT LCD Panel
Resolution : 1280 x 1024
Brightness : 350 cd/m²
Viewing Angle (H-V): 170/170

Touchscreen
*Resistive touch panel
*Projected capacitive touch panel
*Anti-reflective Glass (non-touch)

Processor Core Logic System

CPU:
Intel 4th Gen. Core i3-4010U
Intel 4th Gen. Core i5-4310U

System Chipset:
SoC

System Memory:
4GB DDR3L SO-DIMM RAM module installed

Ethernet
1 x M12 8pin for LAN with waterproof cap

I/O Interface
1 x M12 8pin for COM 1, RS-232/422/485, Default RS-232, with waterproof cap
1 x M12 8-pin for USB 2.0 with waterproof cap
1 x M12 8pin for LAN with waterproof cap

Storage
1 x 2.5” SATA bay

Expansion
-

Power Supply
9-36V DC input

Software Support
Win7, Win10, Linux

Environment Specifications
Operating Temperature -20°C to 60°C
Storage temperature: -20°C ~ 60°C
Storage humidity: 10% ~ 90% (non-condensing)


Mechanical
Construction: Stainless Steel housing
Mounting: VESA-100 , Yoke-mount
Weight: 8kg
Dimension: 432 x 358 x 55.3

Safety: CE
