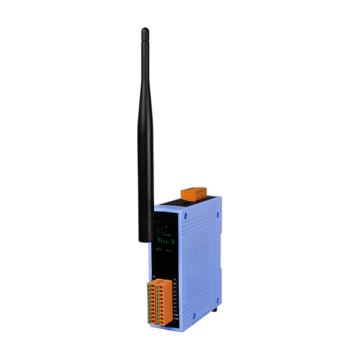

WF-2017

SKU
WF-2017
Lead time 14-22 days
Wi-Fi I/O Module with 8-ch/16-ch AI

• 8-channel Differential Analog Input
• 16-channel Single-ended Analog Input
• Compatible with IEEE 802.11b/g standards
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• Wide Operating Temperature Range
• 4 kV ESD Protection
• Built-in Watchdog

The WF-2017 is a Wi-Fi interface and 8-channel Differential/16-channel Single-Ended analog input module. The analog input range is software selectable and supports +/-10V, +/-5V, +/-1V, +/-500 mV, +/-150 mV, and +/-20 mA. Differential and Single-ended mode is selected by jumpers. In addition, the WF-2017 has WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2017 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2017 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

More Information
I/OAnalog I/O
Manufacturer / BrandICP DAS
ConnectionWireless
