ZKS-300WX-A

SKU
ZKS-300WX-A
Lead time 14-22 days

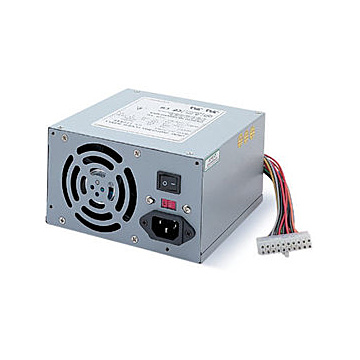

300W Pentium 4 ATX power supply

Input Voltage: 90~135VAC (input 115VAC), 180~260VAC (input 230VAC)

Input Frequency: 47~63Hz

Input Current: 9A for 115VAC at without AC outlet; 5A for 230VAC

Inrush Current: 120A max. at cold start

Switching Frequency: 30KHz typical

Hold Up Time: 16ms min.

Brown Out Voltage: 95VAC max. at 60Hz

Output Power: 300W at 45°C

Power Up Time: < 20ms for +5V output voltage

Power Good: The power good signal will not be higher than 100~500ms after the +5V output stabilizes at its operating value when the unit is turn on

Power Fail: The TTL compatible signal will go down at least 1ms before +5V below 4.75V

PS ON Signal: TTL compatible signal (active low)

Efficiency: 70% min. at full load (AC input 230V)

Altitude: 10,000 feet

Protection Over Voltage: +3.3V from 3.7~4.2V, +5V from 5.5~6.2V, +12V from 13.2~14.2V
Over Load: Total output from 110% min. to 150% max.
Short Circuit: Latch off

Thermal System: Forced air ventilation by DC ball bearing cooling fan; fan status monitoring is optional

Temperature Coefficient: +0.05% per°C

Temperature: Operating: 0~45°C
Storage: -10~+70°C

Humidity: Operating: 20~90% RH
Storage: 10~98% RH

Dimensions: 15.0 x 14.0 x 8.6 cm

MTBF: 100,000 hrs.


Safety Standards

Safety: UL 1950, UL 1950 D3; TUV EN60950; NEMKO 60950; CE IEC 60950; CE Test Report
