ISDM-4805-SDM

SKU
ISDM-4805-SDM
Lead time 21-30 days

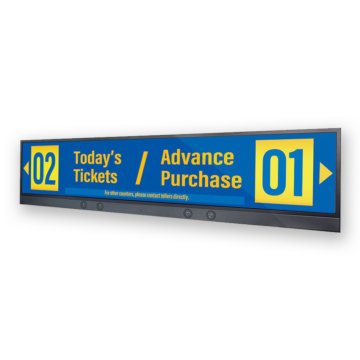

48” TFT LCD, LED Backlight 1000nits, UHD(3840x720)

  • Support Intel® Smart Display Module (SDM)
  • Plug and play with SDM-L and SDM-S CPU boards
  • High Brightness 1000 nits
  • Stretched display (aspect ratio of 16: 3)
  • Slim Bezel
  • Long lasting 24/7 operations
  • Built-in Speakers
  • BL MTBF: 100,000 hours
Display
Screen Size 48" TFT LCD
Screen Resolution 3840x720
Display Ratio 16 ::3
Contrast Ratio 1200 ::1
Brightness 1000 nits
Viewing Angle 178°(H),178°(V)
Number of Colors 16.7M
Touch Screen
Touchscreen -
I/O Ports
Video

SDM-S, SDM-L interface

Other Ports
Operating System
Operating System
Power
DC Input / Source Voltage 230V AC

Multimedia

Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution
Dimensions / Weight
Weight (kg) 12.0 kg
Dimensions 1220.3 x 289.7 x 62 mm
Enclosure
Bezel size
12.5/ 50.2/12/12 mm
Material
Mounting VESA 400x100, (M6 Screw)
Protection
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
More Information
Display Size49"
Signal inputSmart Display Module (SDM)
