DLS5502-B-SDM

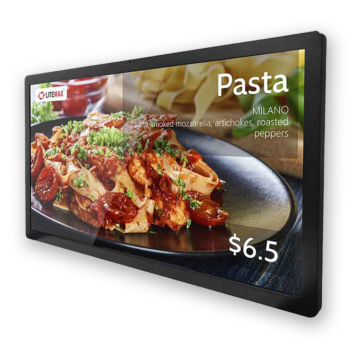

55” TFT LCD, LED Backlight 400nits, FHD(1920x1080) SDM Solutions, Support Intel® SDM-S/SDM-L
- Support Intel® Smart Display Module (SDM)
- Plug and play with SDM-L and SDM-S CPU boards
- High Brightness 350 nits
- P-Cap Touch Screen
- Slim Bezel
- Long lasting 24/7 operations
| Display | |
| Screen Size | 55" TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | 16 ::9 |
| Contrast Ratio | 1600 ::1 |
| Brightness | 350 nits |
| Viewing Angle | 178°(H),178°(V) |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | PCAP |
| I/O Ports | |
| Video |
SDM-S, SDM-L interface |
| Other Ports | |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | 230V AC |
| Multimedia | |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 28 kg |
| Dimensions | 1233x709.4x71.6 mm |
| Enclosure | |
| Bezel size |
10.2/16.8/10.7/10.7 mm |
| Material | |
| Mounting | VESA 400x400 |
| Protection | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
| Display Size | 55" |
|---|---|
| Signal input | Smart Display Module (SDM) |
