GOT115-319
SKU
GOT115-319-xx
Lead time 21-30 days

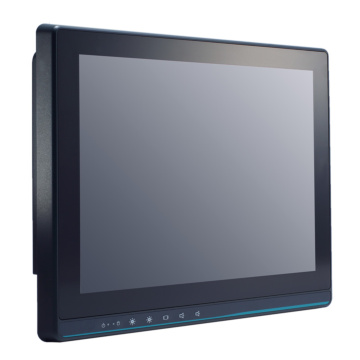

- 15" XGA TFT LCD display with LED backlight
- Fanless design with Intel® Celeron® processor N3350 or Intel® Pentium® processor N4200
- 2 GbE LAN, 4 USB and 2 COM
- IP65-rated plastic front bezel
- External AT/ATX mode selection switch
- Easy access storage & RAM design
- Supports panel mount, wall mount, VESA arm and desktop stand
- RS-232/422/485 with RI/5V/12V selectable by BIOS
- Programmable OSD function key
| System | |
| Processor | Intel® Pentium® N4200 |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x 2.5" SATA HDD (9.5 mm height) 1 x mSATA 1 x MicroSD card |
| Memory | 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB |
| Display | |
| Screen Size | 15" TFT LCD |
| Screen Resolution | 1024*768 |
| Display Ratio | 4 ::3 |
| Contrast Ratio | |
| Brightness | 300 nits |
| Viewing Angle | 160°/160° |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) 5-Wire Resistive (Single-touch) |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | 2x USB 3.0 |
| Serial | 1 x RS-232/422/485 1x RS-232 |
| Video | |
| Ethernet | 2 x RJ45 GbE |
| Other Ports | Audio Line-Out |
| Operating System | |
| Operating System | Windows 10 IoT Enterprise 64bit |
| Power | |
| DC Input / Source Voltage | 9-24V DC 230V AC-DC Adapter |
| Power Management | |
| Expansion Slots | |
| 1 x M.2 Key E for wireless module 1 x mPCIE slot |
|
| Multimedia | |
| Integrated Speakers | 2x Speaker |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 90% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 3.2 kg |
| Dimensions | 330 x 306 x 50mm |
| Enclosure | |
| Bezel | IP65 Front |
| Material | Plastic , Aluminium |
| Mounting | VESA100 |
| Certification | |
| Certification | CE / FCC |
| Cooling | Fanless |
|---|---|
| Display Size | 15" |
