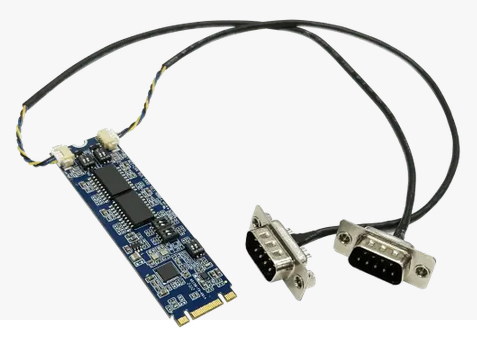

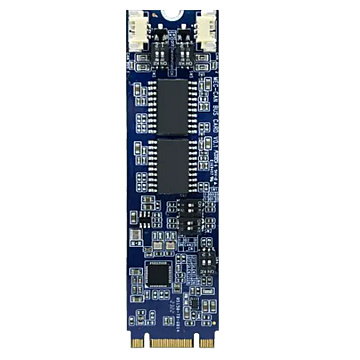

MEC-CAN-2F02i dual isolated CANbus FD/2.0B
SKU
MEC-CAN-2F02i
Lead time 21-30 days
M.2 2280 (B+M key) dual isolated CAN bus FD/2.0B board (-40℃~+85℃)
-
Single-Lane (x1) PCI-Express with throughput up to 5.0 / 2.5GT/s
-
Fully compliant with PCI-Express Base Specification Rev. 2.0
-
Meet the Requirements of the ISO 11898-1:2015
-
Mixed CAN FD and CAN 2.0A/B mode
-
Support baud rate 10/20/50/100/125/250/500/800/1000K
-
Support data(BRS) baud rate 1M/2M/4M/5M
-
Support CAN message acceptance filter
-
Compliant with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
| Processor | |
| Interface | M.2 PCIe Rev1.1 |
| Controller | Fintek F81601A |
| BUS | PCI Express 2.0 x1, M.2 2280, Key B+M Male |
| IRQ & IO | |
| ESD Protection | ±15KV on board |
| CAN Communication |
CAN FD、CAN 2.0A/B
|
| 2-Channel | |
| Data bitrate |
up to 1Mbps
|
| Software |
Win 7, Win 8, Win 10, Win 11, Linux Kernel 3.4 and above
|
| PCB Dimension | 22x80mm |
| I/O | CAN bus |
|---|---|
| Manufacturer / Brand | Cervoz |
| Connection | M.2 |
