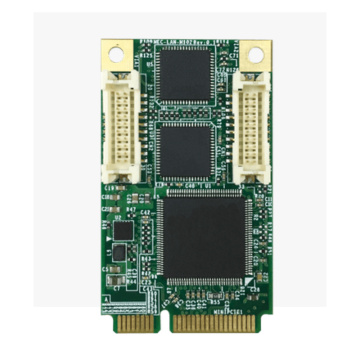

Mini-PCIe Module with 2x Gbe Ethernet LAN

SKU
MEC-LAN-M102-30
Lead time 21-30 days
EUR155.00 EUR125.00

Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout

  • Single-Lane (x1) PCI-Express with throughput up to 5.0 / 2.5Gbps
  • Fully compliant with PCI-Express Base Specification Rev 2.0
  • Integrated 10/100/1000Mbps transceiver
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3z compliant
  • IEEE 802.3x Full-Duplex flow control

System
Controller Intel chip i210 x2
Connector 2x RJ45
Bus Type Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
Card Slot Interface Mini-PCIe
Data rate 10/100/1000Mbs
Cooling method Passive Heatsink
PoE Power/port -
Physical Characteristics
Dimensions 30.00 x 50.95mm


System Support

Windows 7/10
Environmental
Operating Temperature -40°C ~ 85°C
