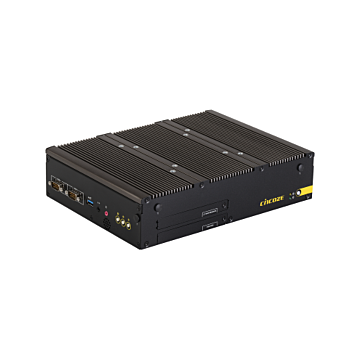

P2102E CDS PC Module, i5

Customize P2102E CDS PC Module, i5
P2102E CDS PC Module, i5

* Required Fields

Your Customization
P2102E CDS PC Module, i5
P2102E CDS PC Module, i5


    Lead time 21-30 days


    • Onboard 8th Generation Intel® Core™ U Series Processor
    • 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
    • Supports Triple Independent Display
    • Integrated USB 3.2 Gen 2 supports up to 10Gbps
    • M.2 E Key Socket for Wireless Module or Intel CRF Module
    • Supports Ignition Sensing Function (IGN) (with optional CFM module)
    • Supports 2x PoE+ Function (with optional CFM module)
    • 1x PCI or 1x PCIe Slot for Add-on Card Expansion: Max. Length 180mm (with optional riser card)
    • Supports CDS Technology for Convertible Panel PC
    • Built-in Two 2W Internal Speakers
    Processor - Intel® Core™ i5-8365UE Quad Core Processor
    CPU Performance
    Security Hardware
    Chipset SoC
    Storage 2x 2.5” SATA3 HDD/SSD Bay
    Memory 2x DDR4 260-pin SO-DIMM socket, support up to 64 GB
    Audio Realtek ALC888-GR
    High Definition Audio
    Graphics Integrated Intel® UHD Graphics 620
    Triple independent display with 1x VGA, 1x DP and 1x CDS interface
    I/O Ports
    USB 2.0 2 x USB2.0
    USB 3.0 3x USB 3.2
    Serial 4x RS-232/422/485
    with Auto Flow Control (Support 5V/12V), DB9
    Video 1x Display Port (4096 x 2304)
    1x VGA
    1x CDS Interface
    Ethernet 2x GbE LAN , RJ-45
    Other Ports Mic-in/Speaker out
    16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
    1x Remote Power On/Off Connector
    Expansion Interface 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card)
    1x 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
    2x CFM interface
    2x Full-size Mini-PCIe Sockets
    1x SIM Socket
    2x Universal I/O Bracket
    4x Antenna hole
    1x Convertible Display System (CDS) Interface
    Operating System
    Operating System Windows® 10
    DC Input / Source Voltage Power Input Voltage 9~48VDC
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD, Memory
    Shock/Vibration Shock: Operating, 50 Grms, Half-sine 11 ms Duration
    Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 2.7 kg
    Dimensions 254.5 x 190 x 61 mm
    Material Aluminum / Steel
    Mounting Display module with CDS
    Desk / Wall mounting
    Peripherals & Devices
    Extra Features
    Certification CE
    More Information
    CPU FamilyWhiskey Lake (8th Gen Core i3/i5/7) Mobile
    Operating TempWide Temp -40..70C
