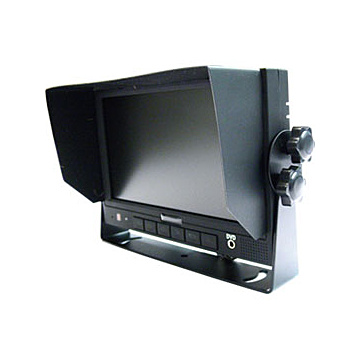

Niceview 7" TFT Quad monitor

In Stock
SKU
tft070q
EUR299.00
7" TFT monitor with 4-channel image processor. Split screen 1-4. DC12-32V.
Details
*7" TFT monitor for rear view camera use.
*Built in 4-channel image processor.
*Split screen up to 4.
*PIP function.
*Trigger signals for automatic picture switch.
*Automatic backlight for buttons day/night.
*Sequencer function adjustable to 1-30s.
*Mirror and normal picture modes.
*Operating voltage DC12-32V.
*Support max 4x 300mA power for cameras.
*Short circuit protection.
*Removable sun shade.
*Mounting brackets included.
*IR remote controller.

Connection:
4x Video/audio inputs for cameras (4-Pin male)
1x Video/audio input for AUX/DVD (RCA)

1x Video/audio output for monitors (RCA female)
1x Audio output for external monitor (RCA female)
Package includes
1x Niceview 7" TFT Quad monitor
2x Mounting bracket
1x Power cable
1x Remote controller
1x Front panel AV-cable adapter
1x English manual
Specifications
TV System PAL/NTSC
Resolution 1440 x 234
Brightness 350cd/m
Contrast 400:1
Viewing angle 65/65
Aspect ratio 16:9
Operating temp -20C ~+55C
Power consumption max 25W
Power for cameras Max 4 x 300mA / 12V
Video inputs 4x 4-PIN for cameras

1x RCA for DVD/AV
Audio Inputs 4x 4-PIN for cameras

1x RCA for DVD/AV
Video outputs 1x RCA for recorder


Audio output 1x RCA for recorder
Dimensions 182 x 122 x 42mm
