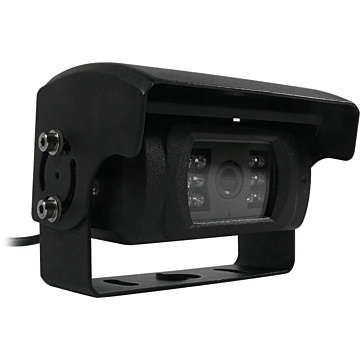

Niceview Rugged 921 Rear View Camera

SKU
nicecam921
In Stock
EUR195.00 EUR249.00
Sharp 1/4" CCD sensor. Motorized auto shutter. Super wide 160 degree picture angle. Automatic heater with thermostat. Nightvision. Ice, water and dust resistant design. For rugged use!
Details
Durable rear view camera for professional and demanding use.

*Sharp 1/4" CCD picture sensor, colorful and noiseless picture.
*Water and dust resistant metallic design.
*Auto shutter to protect lens and glass from dirt and rocks.
*Nightvision with IR-leds.
*Super wide 160 degree picture angle.
*Built in automatic heater.
*Heater protects from moisture and humidity.
*Built in microphone.
*Metallic design, resists vibration.
*Adjustable sun shade.
*Day and Night function, works in full darkness.
*Normal image. Can be used as rear and front view camera. Mirror image possible with for example Niceview 7" Car TFT monitor.
*4-pin aerial female connector (can be converted to RCA with adapter cable).
*4-pin connector protects from dirt and never disconnects!
*4-pin connector for video, audio and power/ground.
*Package includes adapter cable to change 2.1mm power connector to open connectors.
Package includes
1x Niceview Rugged 921 Rear View Camera
1x Power adapter cable
1x Tools for adjusting the sun shade
Specifications
Model NiceCAM921
Image sensor Sharp 1/4” CCD
Horizontal resolution 420
System PAL
Picture Color
S/N Ratio More than 48dB
Minimum Illumination 0 Lux with IR LEDs
Gamma characteristic 0,45
IR Distance 10m
IR Status Under 10 Lux by CDS
IR Power On CDS Auto control
Video output 1Vpp, 75ohm
Video connector 4-pin
Auto Gain Control Auto
Auto Electronic Shutter (AES) Auto PAL:1/50s~1/100,000s
Power/Current DC10-32V
Lens 1.75mm
Viewing angle horizontal (degrees) 160
Viewing angle diagonal (degrees) 160
On Screen Display No
Water and dust resistance IP66
Dimension (mm) 110x84x81
Weight (g) 500
Housing Aluminium
Operating temperature (Celsius) -30~ 50
