FPC-7300

SKU
fpc-7300
Lead time 21-30 days
Rugged Fanless PC with Core2Duo Cpu, 1x PCI
Details
Fanless design
Wide Range DC Power Input (10 ~ 28V)
Rugged Design for Shock/Vibration Protection
Rich onboard I/O and Expansion Slots(1 x PCI + 1 x Mini-card)
Support Various Video Interfaces (Analog RGB, DVI, Displayport, TV-out)
Support Outside Accessible CF Slot
Easy Installation/Maintenance
Support DDR2 So-DIMM up to 4GB
Package includes
FPC-7300
*Intel 2.26Ghz Mobile P8400 CPU

*230V AC adapter
Specifications
Processor Core Logic System

CPU:
Intel® Core™ 2 Duo processor P8400 2.26 GHz with 1066MHz FSB, 3M cache

Chipset:
Intel® GM45 + ICH9M

System memory:
2 x 200-pin Dual Channels DDR2 SO-DIMM Sockets up
to 4GB at 667/800MHz

Graphics
Intel® GM45 integrated GMA X4500, support DirectX 10, Shader Model 4.0


Ethernet
Interface: 2x 10/100/1000 Mbps Gigabit Ethernet
Controller: 2 x Realtek RTL8111C Gigabit Ethernet controllers

I/O expansion
1 x DB-44 female connector (3x RS-232, 1x RS-232/422/485)
1 x PS/2 Keyboard & Mouse
1 x VGA port
1 x Displayport
1 x 6-pin Mini-DIN connector for S-Video output
8 x USB 2.0
2 x RJ45 Port
Mic-in/Line-out (6W pre-amplified)


Power Supply
10-28V DC Input

Expansion Slot
1 x PCI slot w/ riser card
1 x Mini-card slot

Storage
1 x 2.5" drive bay for HDD/SSD
1 x CompactFlash Type II Socket (outside accessible)

Mechanical
Construction:Aluminum alloy
Mounting: Wall-mount(Default integrated)/Din rail mounting
Weight: 3.9 kg w/o storage device

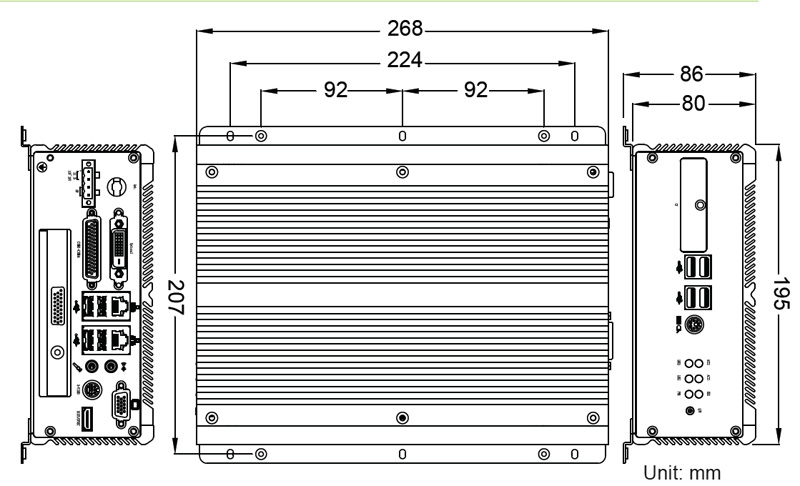

Dimensions: 195 x 268 x 80 mm


Environment Specifications
Operating Temp: -20 ~ 55°C , ambient w/ air flow
Storage Temp: -40 ~ 85°C
Relative Humidity: 10 ~ 95% @ 40°C (non-condensing)
Vibration: 3 Grms/5~500Hz/random operation
Shock & Crash: Operating 40G (11ms), Non-Operationg 60G with CF/SSD
Crash: 80G (11ms)
