GOT5152T-845-XGA-J

Lead time 21-30 days
SKU
GOT5152T-845-J

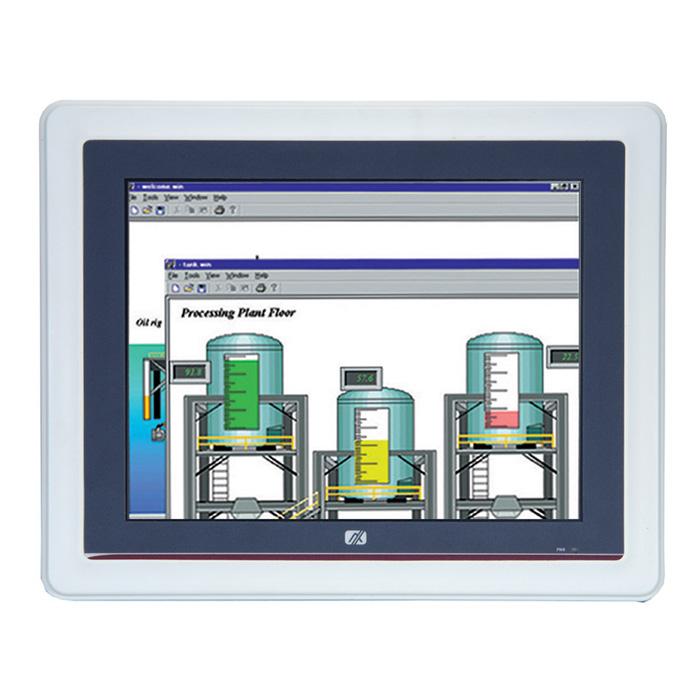

15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060
Details
* 15" XGA TFT LCD display with LED backlight
* Fanless design with Intel® Celeron® processor N3060
* 2 GbE LAN, 4 USB and 2 COM
* Plastic and IP65-rated front bezel
* Supports RFID (optional)
* External AT/ATX mode selection switch
* Easy access storage design
* Supports optional panel mount/wall mount/VESA arm/desktop stand
* Adjust RS-232/422/485 setting via BIOS
Specifications
Display
15" TFT LCD

Touch Screen: 5-wire resistive type
Resolution: 1024 x 768
Brightness: 450cd/m2

Processor Core Logic System

CPU:
Intel® Celeron® processor N3060 up to 2.48 GHz

System Chipset:
SoC Integrated

System Memory:
1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB

Ethernet
2 x 10/100/1000 Mbps (Intel® i211AT)

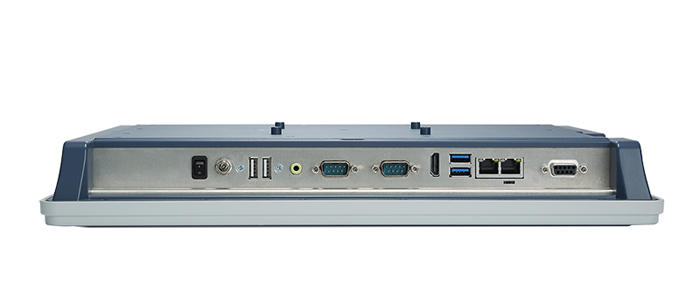

I/O Interface
1 x RS-232/422/485
1 x RS-232
2 x USB 3.0
2 x USB 2.0
2 x 10/100/1000Mbps Ethernet
1 x HDMI
1 x Audio (Line-out)

Storage
1 x 2.5" SATA Bay
1 x mSATA

Expansion
1 x Full-Size Mini PCI Express Mini Card with mSATA
1 x Full-Size Mini PCI Express Mini Card with SIM Slot

Power Supply
100~240V AC-DC 60W power adapter

Software Support
Windows 10

Environment Specifications
Operating Temperature 0°C to 45°C
Storage temperature: -20°C ~ 60°C
Humidity: 10% ~ 90% (non-condensing)

Safety: CE

Mechanical

Construction: Plastic /Aluminium housing

Mounting:
Panel / Wall / Desktop

Dimension: 387.9 x 54.6 x 307.7 mm

Weight: 3.2 kg
