P1101-E50 CDS PC Module

Lead time 21-30 days
SKU
P1101-E50
Intel® Atom® E3950 Quad Core PC Module, 4x USB, 4x COM 232/485, 1x VGA, 1x DP, DIO, Speaker, CDS interface
Details
* Onboard Intel® Atom® / Pentium® Processor
* 1x DDR3L SO-DIMM max. up to 8GB

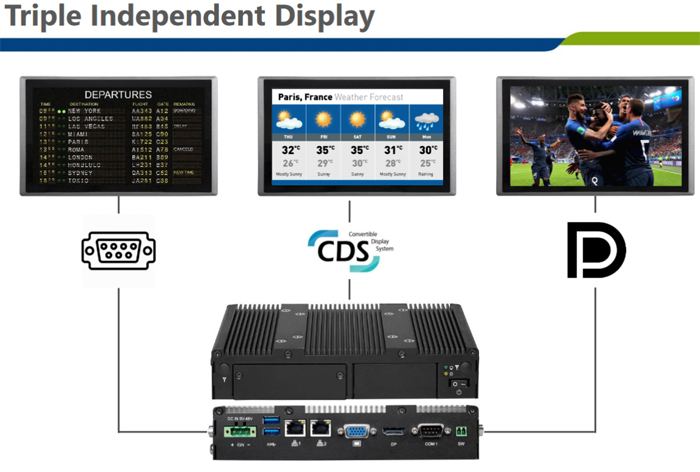

* Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort)
* 1x 2.5” SATA Drive Bay, 1x mSATA Socket

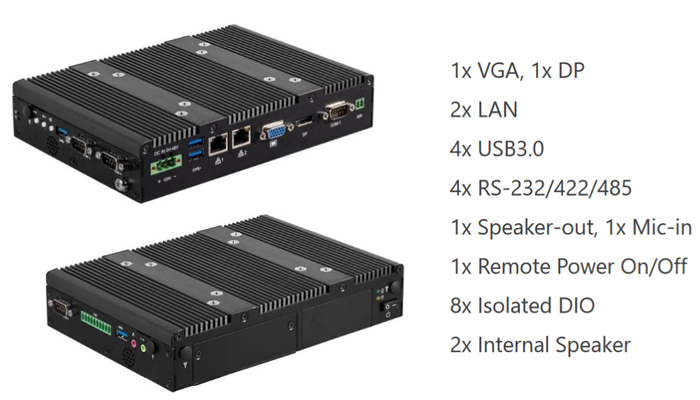

* Rich I/O (2x LAN, 4x USB, 4x COM, 8x Isolated DIO)
* 2x Full Size Mini-PCIe Expansion Socket
* Supports 2x PoE+ Function (with optional CFM module)
* Supports Ignition Sensing Function (IGN) (with optional CFM module)
* Supports CDS Technology for Convertible Panel PC
* Built-in Two 2W Internal Speakers
Package includes
P1101 module
*Atom E3950 cpu
Specifications
System
Processor Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 Ghz
CPU Performance
Chipset SoC
Storage 2 x 2.5” SATA3 bay
2 x mSATA
Storage Support
Memory 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket
Memory (RAM)

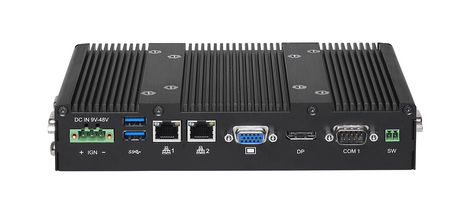

I/O Ports
USB 2.0 -
USB 3.0 4x USB 3.0
Serial 4x RS-232/422/485
Video 1 x VGA
1 x DisplayPort
1 x CDS interface
Ethernet 2 x RJ45 GbE (PoE+ with optional )
Other Ports 1x Audio Line-out,
1x Mic-in
8x Isolated DIO
Operating System
Operating System Windows 10 Pro, Windows 10 IoT, Linux
Power
DC Input / Source Voltage 9-48V DC
230V AC-DC adapter (Optional)
Power Management
Expansion Slots
Expansion 1 x CFM POE interface
1 x CFM IGN interface
1 x SIM card slot
2 x mPCIE


Multimedia
Integrated Speakers
Operating Temperature
Operating Temperature -40ºC to 70ºC with wide-temp peripherals
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 1.5 kg
Dimensions 204.5 x 149 x 41.5 mm
Enclosure
Bezel
Material Aluminum
Mounting Wall-mount, VESA
Note *
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
