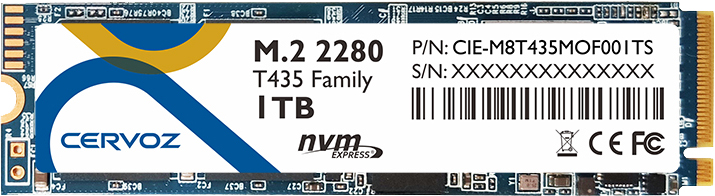

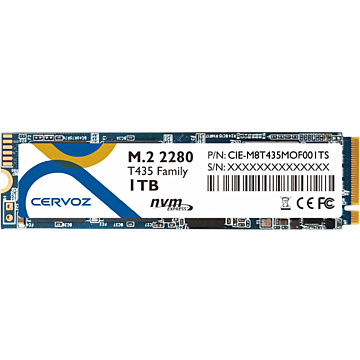

128GB M.2 2280 SSD, NVME, Industrial, Wide-temp

  • Compliant with PCIe Gen3x4 interface (backward compatible to PCIe Gen 2 and Gen 1)
  • Compliance: NVMe 1.3 / PCI Express Base 3.1
  • 3D TLC flash memory
  • Capacity: 128GB ~ 1TB
  • With DDR3 DRAM Buffer
  • End-to-End data protection
  • SLC write cache technology
  • Thermal throttling
  • Operating as boot disk
  • Static and dynamic wear leveling
  • Bad block management
  • S.M.A.R.T. & TRIM command
  • Power Saving Modes: Support APST / Support ASPM / Support L1.2
  • Fully compatible with Windows 8.1, Windows 10, Mac OS, and Linux*
Form Factor
Form Factor M.2 PCIe 2280
Product grouping T435 Family (NVMe with DRAM buffer)
Interface PCIe Gen3x4 (backward compatible to PCIe Gen 2 and Gen 1)
Connector M.2 2280 (M)
NAND Flash type 3D TLC
Capacity 128GB256GB/512GB/1TB
Sequential Read up to 2085MB/s
Sequential Write up to 1840MB/s
DRAM buffer Included
ECC Scheme Applies the LDPC (Low Density Parity Check) of ECC algorithm
MTBF 2,000,000 hours
Low Power Management DIPM / HIPM mode
Supply Voltage +3.3V DC ± 5%
Dimensions 80.00*22.00*3.50mm
Valmistaja / BrandCervoz
Interface (Connector)M.2 M-key
Data InterfaceNVMe /PCIe Gen3x4
Operating TempExtreme Wide Temp -40..85C
