Rugged Compact

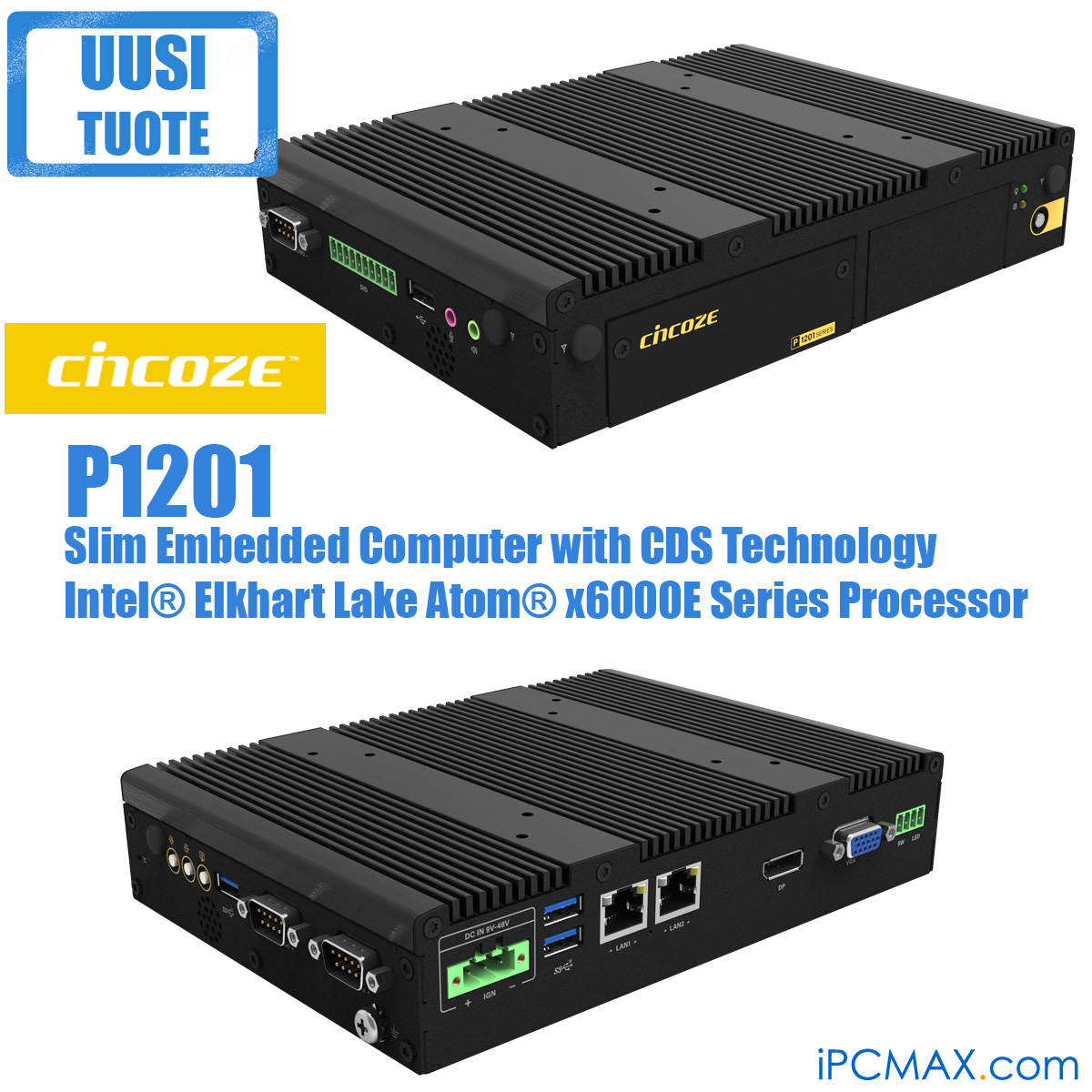

Intel® Elkhart Lake Atom® x6000E Series Processor Slim Embedded Computer with CDS Technology

• Intel® Elkhart Lake Atom® x6425E/x6211E Processor
• 1x DDR4 SO-DIMM
• 1x M.2 Key E Type 2230 Socket for Intel® CNVi/Wireless Module
• CFM Technology for Power Ignition Sensing Function and PoE Function

• Onboard Intel® Pentium® N4200 Processor
• Supports Triple Independent Display
• Supports CMI Interface for I/O Expandability
• Supports PoE+ and Power Ignition Function (with optional CFM modules)
• 1x 2.5” SATA Drive Bay, 1x mSATA Socket
• 2x Full Size Mini-PCIe Socket, 2x SIM Card Socket
• Compact Size (185 x 131 x 56.5 mm)
• Wide Operating Temperature -40°C to 70°C
• E-Mark (E13, No. 10R-0515075), LVD EN60950-1

• Onboard Intel® Atom® / Pentium® Processor
• 1x DDR3L SO-DIMM max. up to 8GB
• Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort)
• 1x 2.5” SATA Drive Bay, 1x mSATA Socket
• Rich I/O (2x LAN, 4x USB, 4x COM, 8x Isolated DIO)
• 2x Full Size Mini-PCIe Expansion Socket
• Supports 2x PoE+ Function (with optional CFM module)
• Supports Ignition Sensing Function (IGN) (with optional CFM module)
• Supports CDS Technology for Convertible Panel PC
• Built-in Two 2W Internal Speakers

• Onboard Intel® Celeron® N3350 Processor
• Supports Triple Independent Display
• Supports PoE+ Function (with optional CFM module)
• Supports CMI Interface for I/O Expandability
• 1x 2.5” SATA Drive Bay, 1x mSATA Socket
• 2x Full Size Mini-PCIe Socket, 1x SIM Card Socket
• Ultra Compact Size (150 x 105 x 52.3 mm)
• Wide Operating Temperature -40°C to 70°C
• Safety: LVD EN62368-1

• Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
• 1x DDR3L SO-DIMM Max. up to 8 GB
• Dual Independent Display from 1x DVI-I and 1x DisplayPort
• 2x Intel® GbE port support Wake-on-LAN and PXE
• 1x USB 3.0, 3x USB 2.0
• 4x RS232/422/485 port with 5V/12V power
• 4x Isolated DI, 4x Isolated DO
• 1x 2.5” SATA SSD/HDD bay
• 1x CFast card and 1x SIM card socket
• 9~48VDC power input, support AT/ATX mode
• 2x Mini-PCIe slot for Wi-Fi / GSM / I/O expansion
• Universal I/O bracket for Mini-PCIe expansion
• E-Mark (E13, No.10R-0514062) Certified
