AIE100-903-FL-NX

Tuotenro

AIE100-903-FL-NX

Toimitusaika 21-30pv

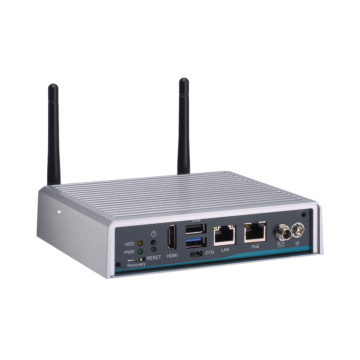

Fanless Edge AI System with NVIDIA® Jetson Xavier™ NX, HDMI, GbE LAN, GbE PoE, 2 USB, and Allxon Device Management Solutions

NVIDIA® Jetson™ Xavier NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
High AI computing performance for GPU-accelerated processing
384-core NVIDIA Volta™ GPU with 48 Tensor Cores
Ideal for edge AI smart city applications
Supports one 15W GbE PoE for camera
Wide operating temperature from -30°C to +50°C
JetPack supported

System
Processor	NVIDIA® Jetson™ Xavier NX
CPU Performance	6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
Security Hardware
Chipset	SoC
Storage	Onboard 16GB eMMC (via Jetson Nano™) 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot 1 x Micro SD slot

Memory	1 x 8GB 128-bit LPDDR4x onboard
GPU / Graphics	384-core NVIDIA Volta™ GPU with 48 Tensor Cores
I/O Ports
USB 2.0	1 x USB2.0
USB 3.0	1x USB 3.1 Gen2 1 x Micro USB for image flash
Serial
Video	1 x HDMI 2.0 with 4K2K supported
Ethernet	1 x 10/100/1000 Mbps Ethernet (Via Jetson™ Xavier NX) 1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W)
Other Ports	1 x Recovery switch 1 x Reset button 1 x Power button 1 x 12 VDC power input connector 2 x SMA-type antenna connector
Expansion
Expansion Interface	1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x SIM slot
Operating System
Operating System	Linux Ubuntu 18.04
Power
DC Input / Source Voltage	12 VDC screw type
Operating Temperature
Operating Temperature	-30°C ~ +60°C
Humidity Range	10% ~ 95%, non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)	1 kg
Dimensions	147.4 x 129.8 x 34.6 mm
Enclosure
Bezel
Material	Aluminum , IP40
Mounting	Desk / Wall mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE, FCC certified

Lisätietoja
Jäähdytys	Fanless
