AIE110-ONA
Tuotenro
AIE110-ONA-x
Toimitusaika 21-30pv

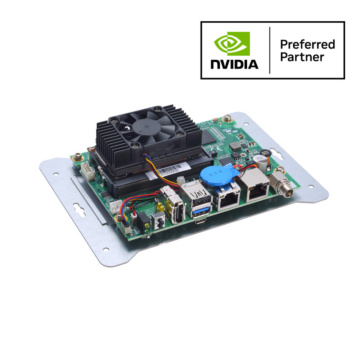

Edge AI Developer Kit with NVIDIA® Jetson Orin™ Nano SoM, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB
- NVIDIA® Jetson Orin™ Nano (up to 40 TOPS)
- 1 USB 2.0, 1 USB 3.2 Gen2, 1 GbE LAN
- Supports one 15W GbE PoE for camera
- 1 M.2 Key M NVMe SSD slot
- 1 PCI Express Mini Card slot for Wi-Fi/Bluetooth/LTE/GPS
- JetPack supported
- Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
| System | |
| Processor | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| GPU | 8GB: 1024-core NVIDIA Ampere architecture GPU with 32
Tensor Cores 4GB: 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
| Chipset | SoC |
| Storage | 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot |
| Memory | 8GB: 8GB 128-bit LPDDR5 onboard 4GB: 4GB 64-bit LPDDR5 onboard |
| AI Accelerator | NVIDIA® Jetson Orin™ Nano |
| I/O Ports | |
| USB 2.0 | 1 x USB 2.0 |
| USB 3.0 | 1 x USB 3.2 |
| Serial | - |
| Video | 1 x HDMI 1.4 |
| Ethernet | 1 x 10/100/1000 Mbps Ethernet (via Jetson Orin™ Nano) 1 x 10/100/1000 Mbps PoE (Intel® I210-IT; max. up to 15W) |
| Other Ports | 1 x DIO 1 x Recovery switch 1 x Reset button 1 x Power button 1 x 12 VDC power input connector |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (USB + PCI
Express signal) 1 x SIM slot |
| Operating System | |
| Operating System | Linux Ubuntu 20.04 or later |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 12VDC |
| Operating Temperature | |
| Operating Temperature | -10°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fan |
| Dimensions / Weight | |
| Weight (kg) | 0.3 kg |
| Dimensions | 165 x 117 x 38 mm |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|
