AIE800-904-FL-DC
Tuotenro
AIE800-904-FL-DC
Toimitusaika 21-30pv

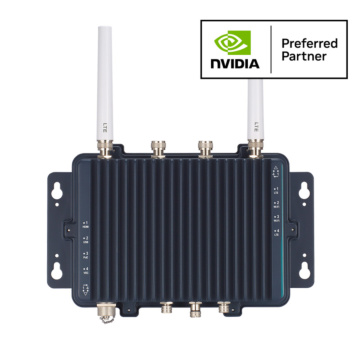

Rugged IP67-rated fanless edge AI system with NVIDIA® Jetson Xavier™ NX, 1 HDMI, 1 GbE PoE, 2 USB, and 9 to 36 VDC power input
- IP67-rated design for outdoor edge AI applications
- NVIDIA® Jetson Xavier™ NX with 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
- High AI computing performance for GPU accelerated processing
- -30°C to +50°C operating temperature range
- 9 to 36 VDC wide range power input
- Features M12 lockable I/Os
- 1 IEEE 802.3af Gigabit PoE (15W)
| System | |
| Processor | 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3 |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
| Chipset | SoC |
| Storage | Onboard 16GB eMMC (via Jetson Xavier™ NX) 1 x M.2 Key B 2242 with PCIe x2 NVMe SSD slot |
| Memory | 8GB 128-bit LPDDR4x onboard |
| AI Accelerator | NVIDIA® Jetson Xavier™ NX |
| I/O Ports | |
| USB 2.0 | 1 x Dual USB 2.0 (M12) |
| USB 3.0 | - |
| Serial | - |
| Video | 1 x C3 HDMI with FHD supported |
| Ethernet | 1 x Gigabit PoE (IEEE 802.3af Gigabit PoE; 15W) (M12) |
| Other Ports | 4 x N-jack antenna opening with waterproof design |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (USB + PCI
Express signal) 1 x SIM slot |
| Operating System | |
| Operating System | Linux Ubuntu 18.04 or later |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 12VDC |
| Operating Temperature | |
| Operating Temperature | -30°C to 50°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Construction | Aluminum die-casting and heavy-duty steel, IP67 |
| Weight (kg) | 4.2kg |
| Dimensions | 366.83 x 235 x 83.8 mm |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|
