AIIS-5410P-S9A1E

Toimitusaika 21-30pv
Tuotenro
AIIS-5410P-S9A1E

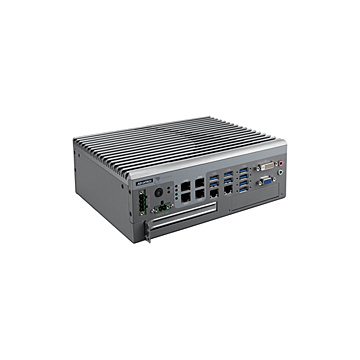

Fanless Vision System with Intel® Core™ i Processor, 4-Channel GigE PoE Camera Interface, and PCIe Slot
Ominaisuudet
* 6th Generation Intel® Core™ i7/5/i3 BGA1440 processor
* Four-channel Gigabit Power over Ethernet (GbE PoE)
* Powered device auto detection and classification
* Compliant with IEEE 1588 and IEEE 802.3af standards
* Compatible with Gigabit Ethernet (GigE) cameras
* Wide input power range (9 ~ 36 V DC)
* Wide operating temperature range (-20 ~ 60 °C)
* Isolated digital I/O
* Internal USB dongle space with lock design
* Desk/wall mounting kit
Spesifikaatiot
Processor Core Logic System

CPU:
Intel Core i5-6442EQ , 1.9Ghz

Chipset:
QM170

System memory:
2 x 240-pin DDR4 SO-DIMM sockets, supporting up to 32B

Graphics
Intel HD Graphic 530, support DirectX12

Ethernet
2x RJ-45, Intel i210AT

Camera interface
4x PoE
Intel® I210 Ethernet controller
IEEE 802.3af ,15.4W


I/O expansion
1 VGA+DVI-D
2x RS-232/422/485
8x USB3.0
DIO

Power Supply
DC 9 VDC ~ 36 VDC

Expansion Slot
1x Mini-PCIe
1x PCIEx8

Storage
1 x SATA 2.5" bay

Mechanical
Construction:Aluminum alloy
Mounting: Wall-mount
Dimensions: 235x88x188mm

Environment Specifications
Operating Temp: 0 ~ 40°C , ambient w/ normal hdd
Operating Temp: -20 ~ 60°C , ambient w/ wide-temp ssd
Storage Temp: -40 ~ 85°C
Relative Humidity: 10 ~ 95% @ 40°C (non-condensing)
